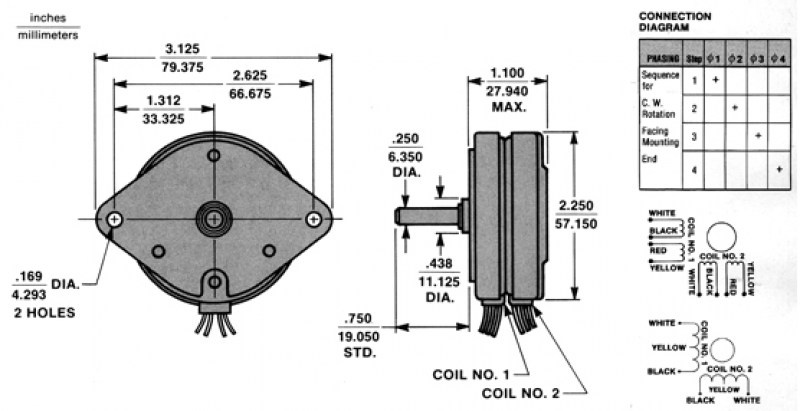

Series 3000
Details & Specifications
Stepper Motor Specifications
| Motor | LMS-3000 (7 1/2° Step-2.25 Dia.) |
| Type | Permanent magent 4ø unipolar, 2ø bipolar |
| Rotation | Bi-directional |
| Voltage | 6, 12, or 24 volts, D.C. |
| Step angle | 7 1/2° |
| Excitation | Unipolar or bipolar |
| No-Load Response | 300 P.P.S. |
| Static torque | 12 oz. in. |
| Detent torque | 1 1/2 oz. in. |
| Rotor inertia | 29 GCM² |
| Bearing system | Porous bronze bearing |
| Over-temp protection | Impedance protected |
| Weight | 8 1/2 oz. |
Synchronous Motor Specifications
| Motor | LMO-3000 (300 R.P.M.) |
| Type | Permanent capacitor or 2 phase |
| Construction | 24 pole permanent magnet rotor |
| Voltage | 6 to 240 VAC |
| Speed | 300 R.P.M. @ 60 Hz 250 R.P.M. @ 50 Hz |
| Torque | Pull-out torque to 11 inch ounces |
| Rotation | Reversible |
| Power input | 12 watts typical @ 120 VAC (continuous duty) |
| Power factor | Approximately unity |
| Over-temp. protection | Impedance protected |
| Insulation system | 105°C system |
| Bearing system | Permanently lubricated porous bronze bearing |
| Weight | 8 1/2 oz. |
