Series 1000

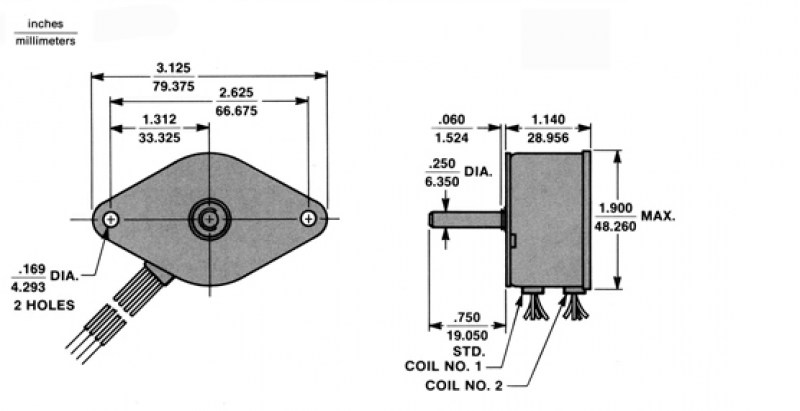

Details & Specifications
Stepper Motor Specifications
| Motor | LMS-1300 (7 1/2° Step-1.90 Dia.) LMS-1600 (15° STep-1.90 Dia.) |
| Type | Permanent magnet 4ø unipolar, 2ø bipolar |
| Rotation | Bi-directional |
| Voltage | 12 or 24 volts D.C. |
| Step angle | 7 1/2°or 15° |
| Excitation | Unipolar or bipolar |
| No-Load Response | 200 to 300 P.P.S. |
| Static torque | 8 oz. in. |
| Detent torque | 1 1/2 oz. in. |
| Rotor inertia | 29 GCM² |
| Bearing system | Porous bronze bearing |
| Over-temp protection | Impedance protected |
| Weight | 5 3/4 oz. |
Synchronous Motor Specifications
| Motor | LMO-1300 (300 R.P.M.) LMO-1600 (600 R.P.M.) |
| Type | Permanent capacitor or 2 phase |
| Construction | 12 or 24 pole permanent magnet rotor |
| Voltage | 6 to 240 VAC |
| Speed | 300 or 600 R.P.M. @ 60 Hz 250 or 500 R.P.M. @ 50 Hz |
| Torque | Pull-out torque to 8 inch ounces |
| Rotation | Reversible |
| Power input | 10 watts typical @ 120 VAC (continuous duty) |
| Power factor | Approximately unity |
| Over-temp. protection | Impedance protected |
| Insulation system | 105°C system |
| Bearing system | Permanently lubricated porous bronze bearing |
| Weight | 5 3/4 oz. |
| 8 1/2 oz. |
