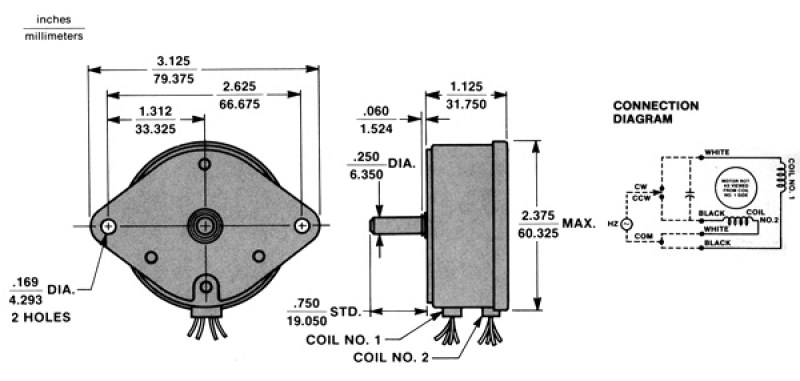

Series 6000
Details & Specifications
| Motor | LMS-6300 (7 1/2° Step-2.25 Dia.) LMS-6360 (9° Step-2.25 Dia.) LMS-6600 (15° Step-2.25 Dia.) |
| Type | Permanent magent 4ø unipolar, 2ø bipolar |
| Rotation | Bi-directional |
| Voltage | 12, 24 volts D.C. |
| Step angle | 7 1/2°, 9° or 15° |
| Excitation | Unipolar or bipolar |
| No-Load Response | 200 to 300 P.P.S. |
| Static torque | 10 to 14 oz. in. typical |
| Detent torque | 1 1/2 oz. in. |
| Rotor inertia | 60 GCM² |
| Bearing system | Porous bronze bearing |
| Over-temp protection | Impedance protected |
| Weight | 8 1/2 oz. |
Synchronous Motor Specifications
| Motor | LMO-6300 (300 R.P.M.) LMO-6360 (360 R.P.M.) LMO-6600 (600 R.P.M.) |
| Type | Permanent capacitor or 2 phase |
| Construction | 12 or 20 or 24 pole permanent magnet rotor |
| Voltage | 6 to 240 VAC |
| Speed | 300, 360 or 600 R.P.M. @ 60 Hz 250, 300, or 500 R.P.M. @ 50 Hz |
| Torque | Pull-out torque to 13 inch ounces |
| Rotation | Reversible |
| Power input | 14 watts typical @ 120 VAC (continuous duty) |
| Power factor | Approximately unity |
| Over-temp. protection | Impedance protected |
| Insulation system | 105°C system |
| Bearing system | Permanently lubricated porous bronze bearing |
| Weight | 8 1/2 oz. |
