Series 7000

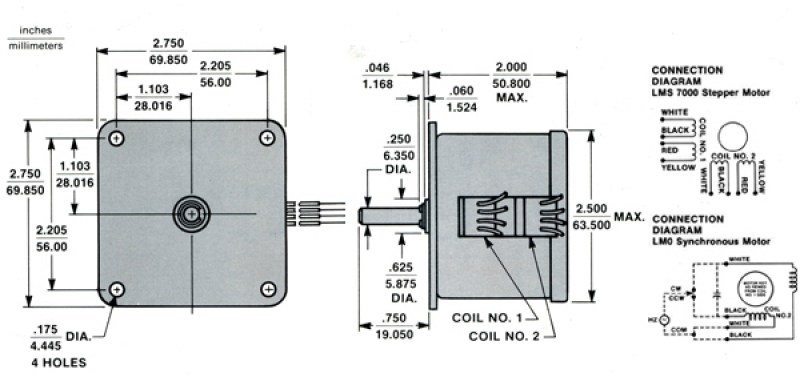

Details & Specifications
Stepper Motor Specifications
| Motor | LMS-7300 (7 1/2° Step-2.50 Dia.) LMS-7600 (15° Step-2.50 Dia.) |
| Type | 4 phase unipolar; 2 ph. bipolar permanent magnet |
| Rotation | Bi-directional |
| Voltage | 12 or 24 volts D.C. |
| Step angle | 7 1/2° or 15° |
| Excitation | Unipolar or bipolar |
| No-Load Response | 200 to 300 P.P.S. |
| Static torque | 20 oz. in. to 30 oz. in. typical |
| Detent torque | 2 oz. in. |
| Rotor inertia | 145 GCM² |
| Bearing system | Porous bronze bearing |
| Over-temp protection | Impedance protected |
| Weight | 18 3/4 oz. |
Synchronous Motor Specifications
| Motor | LMO-7300 (300 R.P.M.) LMO-7600 (600 R.P.M.) |
| Type | Permanent capacitor or 2 phase |
| Construction | 12 or 24 pole permanent magnet rotor |
| Voltage | 6 to 240 VAC |
| Speed | 300 or 600 R.P.M. @ 60 Hz 250 or 500 R.P.M. @ 50 Hz |
| Torque | Pull-out torque 18 to 28 inch ounces |
| Rotation | Reversible |
| Power input | 24 watts typical @ 120 VAC (continuous duty) |
| Power factor | Approximately unity |
| Over-temp. protection | Impedance protection |
| Insulation system | 105°C system |
| Bearing system | Permanently lubricated porous bronze bearing |
| Weight | 18 3/4 oz. |
