Benefits:Smooth Performance with ±5% step accuracy
Powerful rare earth magnets
High torque-to-inertia ratios
Laminated stator for optimum
step accuracy and low hysteresis
Primary Application:High performance disc drives

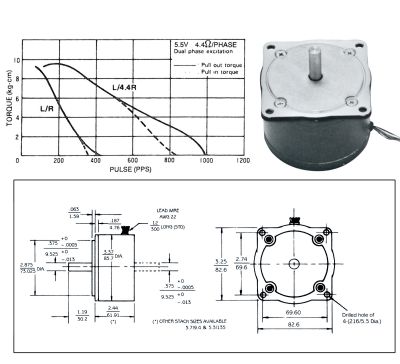

Motor Specifications:
- Step angle: 1.8 deg/li>
- Step angle accuracy:± 5 min.
- Detent torque:600 g-cm
- Holding torque: 10.0kg-cm
- Temperature rise:80°C max
- Ambient temperature range: -20 to +50° C
- Insulation class:B
- Insulation resistance:100MΩ min. @500 VDC
- Dielectric strength:500 Vac for 1 minute
- Radial play: 0.02 mm max. (at 450g load)
- End play:0.08 mm max. (at 450g load)
- Rotor inertia:560g-cm²
- Weight:1400g
- Option:double shaft
- Rated voltage:1.7V to 14V

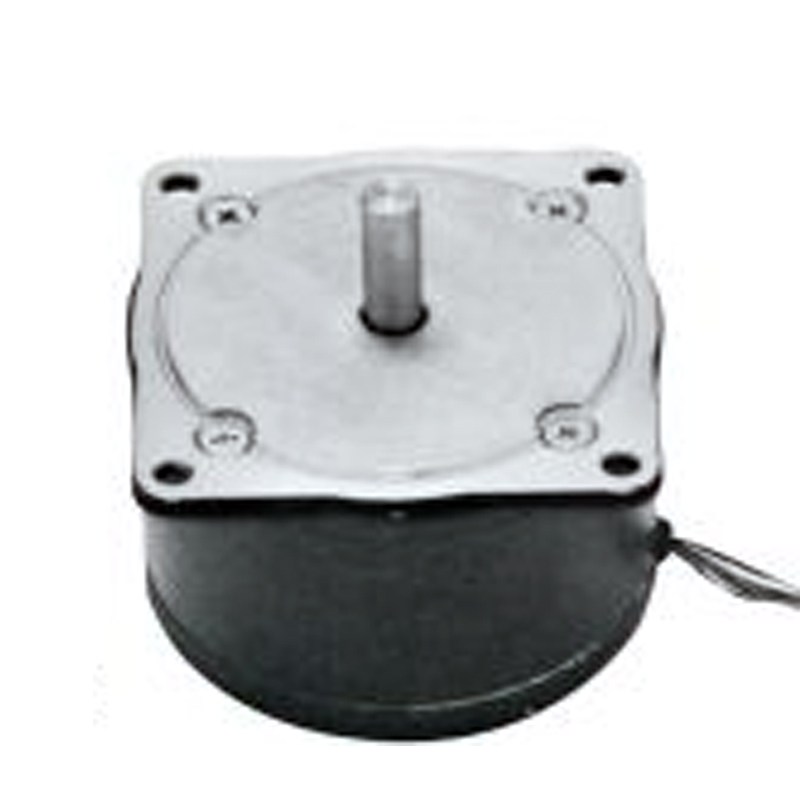

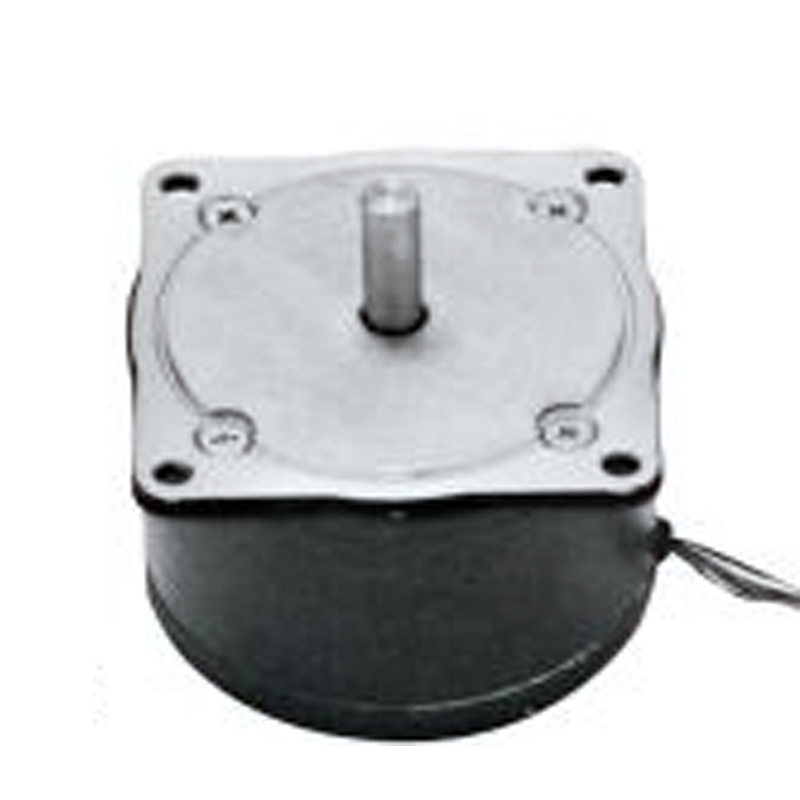

Hybrid 1.8° / Step
