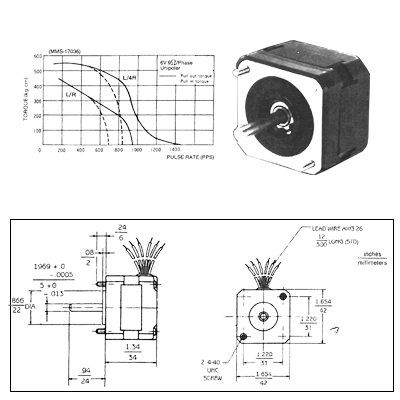

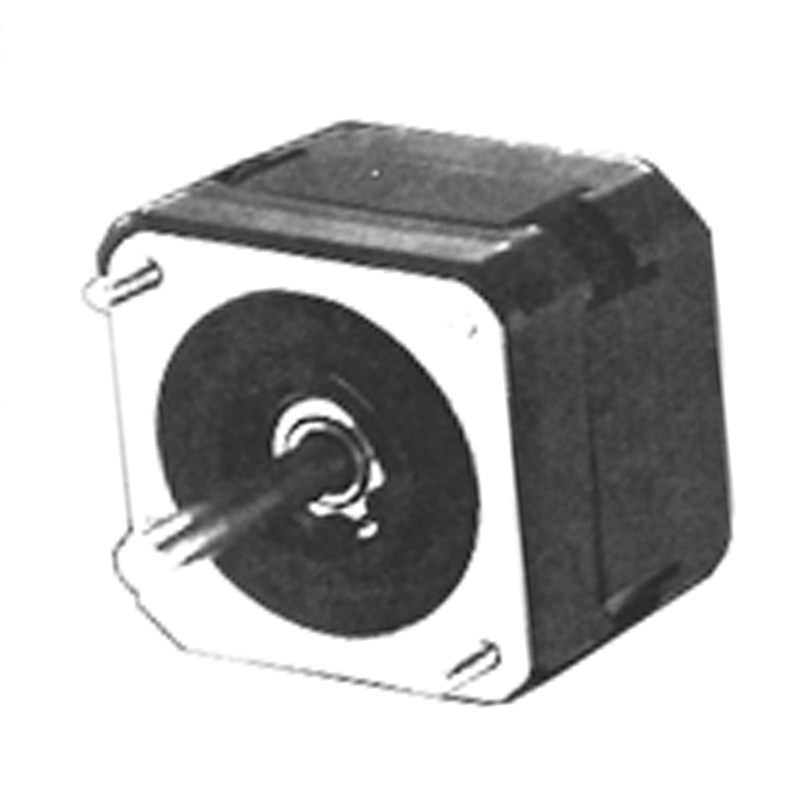

MMS-17037, 17036, 17018 / Stepper Motor

Details & Specifications

(Hybrid 3.75° / Step)

(Hybrid 3.6° / Step)

(Hybrid 1.8° / Step)

Benefits:Powerful rare earth magnets
High torque-to-inertia ratios
Laminated stator for optimum
step accuracy and low hysteresis
Primary Application:High performance disk drives
Motor Specifications:

• Step angle: 3.75(MMS-17037)°
  3.6(MMS-17036)°
  1.8(MMS-17018)°
• Step angle accuracy:± 5%²
• Holding torque:2.5 g-cm
• Temperature rise:80° C max
• Ambient temperature range:-20 to +50° C
• Insulation class:B
• Insulation resistance:100MΩ min. @500 VDC
• Dielectric strength:1minute at AC 500V
• Radial play:0.02 mm max (450 g load)
• End play: 0.08 mm max (450 g load)
• Rotor inertia:17 g-cm²
• Weight:200 g
• Option:double shaft
• Rated voltage: 2.1 V to 12V
