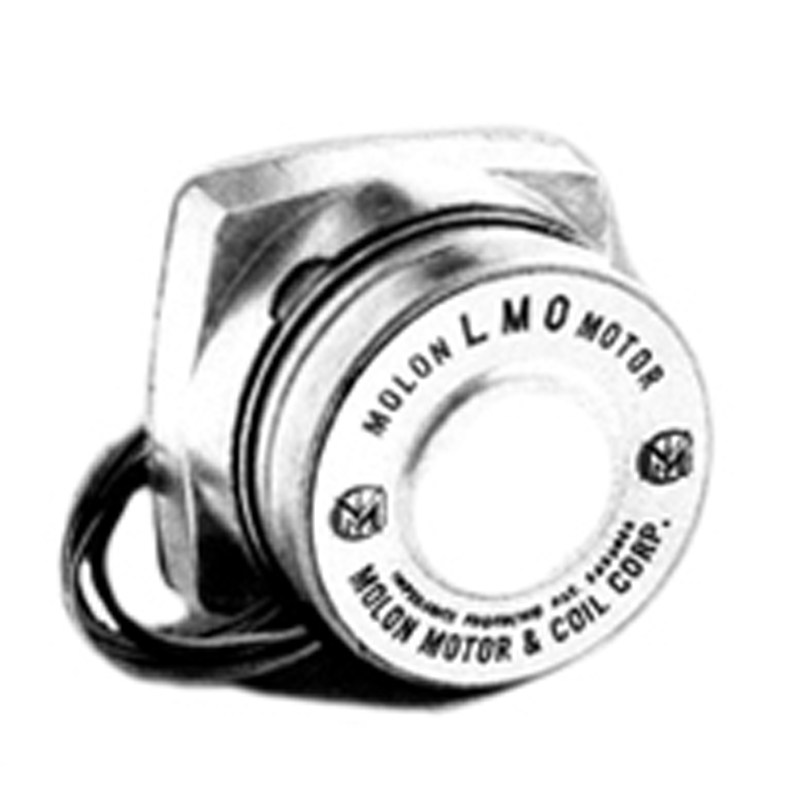

LIM Synchronous / Stepper Gearmotor

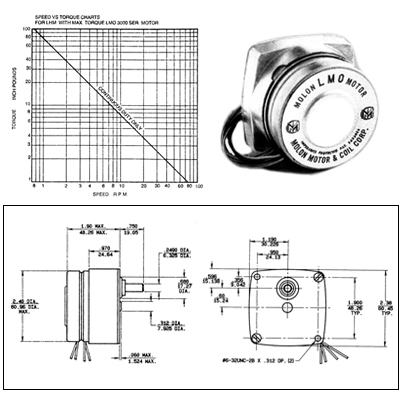

Details & Specifications

PM Synch. Gearmotor
1.5 to 120 RPM at 60 Hz

Benefits:Minimal Envelope
Impedance protection
Totally enclosed construction
Continuous duty
Synchronous speed
U.L. approved construction
Reversible balanced windingTypical Applications:Automatic merchandising equipment
Business equipment
Duplicating machines
Computers
Valve operatorsMotor Specifications:

• 4 pole, 2 coil single phase permanent magnet motor
• 4 wire reversible balanced winding
• 6 to 240 volts A.C., 50 or 60 Hz

Gear Reducer:

• Output torque to 50 inch pounds
• Output speed 1.5 to 120 RPM
• Self-lubricating Delrin gears for light loads
• Hardened alloy steel and powdered iron gears for higher torque requirements
• Precision zinc die cast case
• Gear bearing shafts are highly polished and hardened for long life

Shaft:

• .250 O.D. or .312/7.94 O.D.
• Length and detail per application

Optional Features:

• Die cast gear box cover
