MS034 - Stepper Motor
Contact Molon Motors for FREE QUOTE
moto QUALITY IS OUR FUTURE

MS34 - Stepper Motor

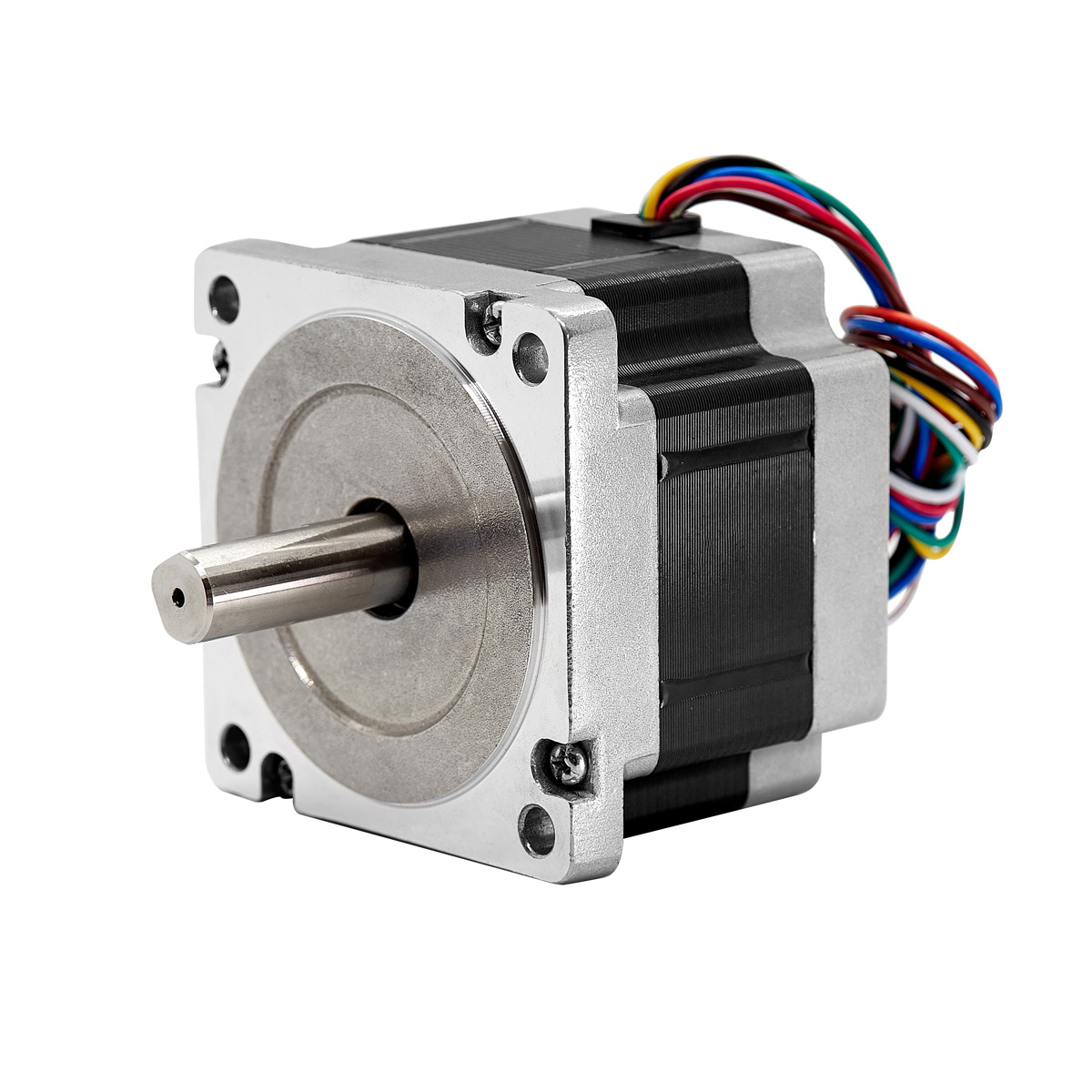

MS86-6803-View-001
MS86-6803-View-001

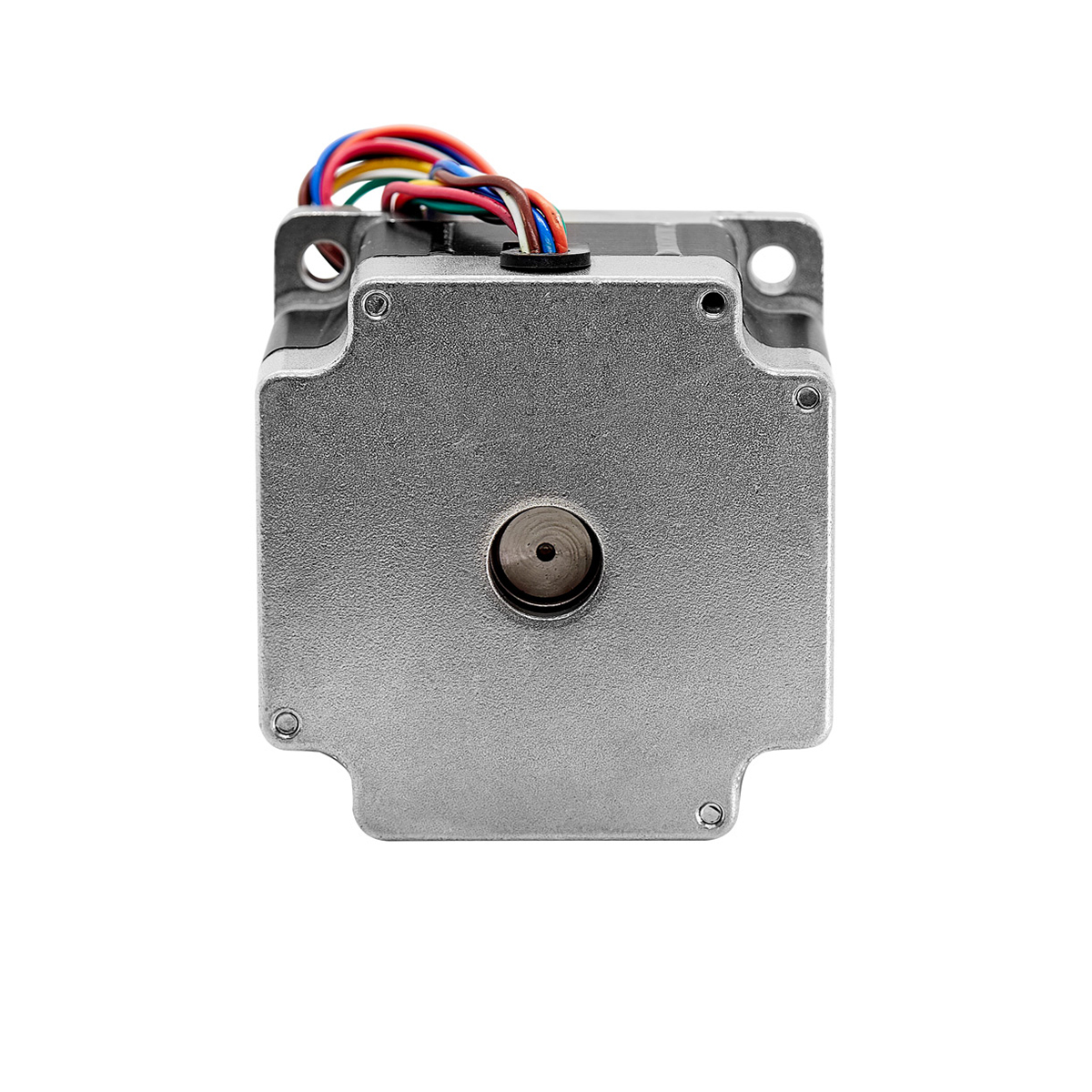

MS86-6803-View-004

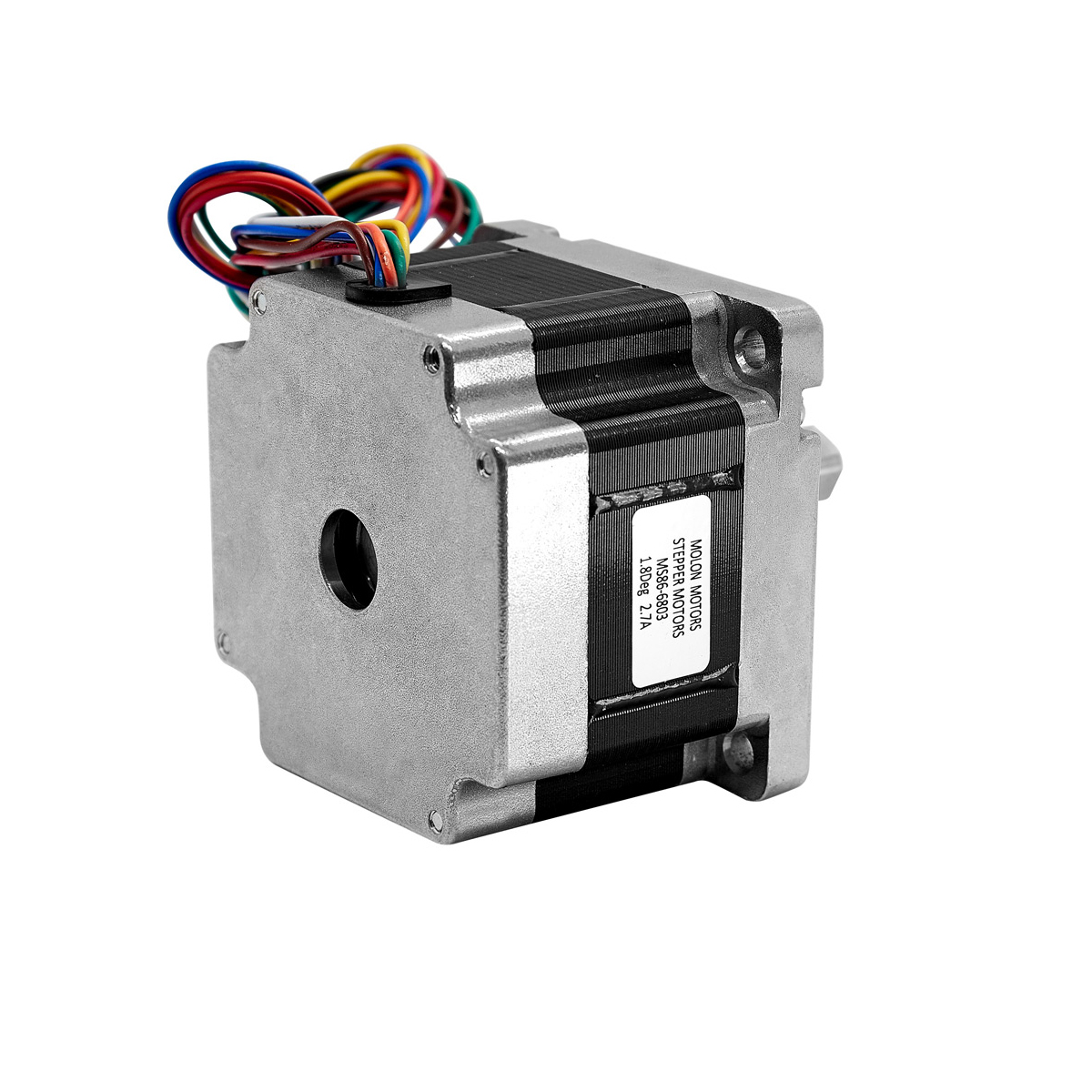

MS86-6803-View-002

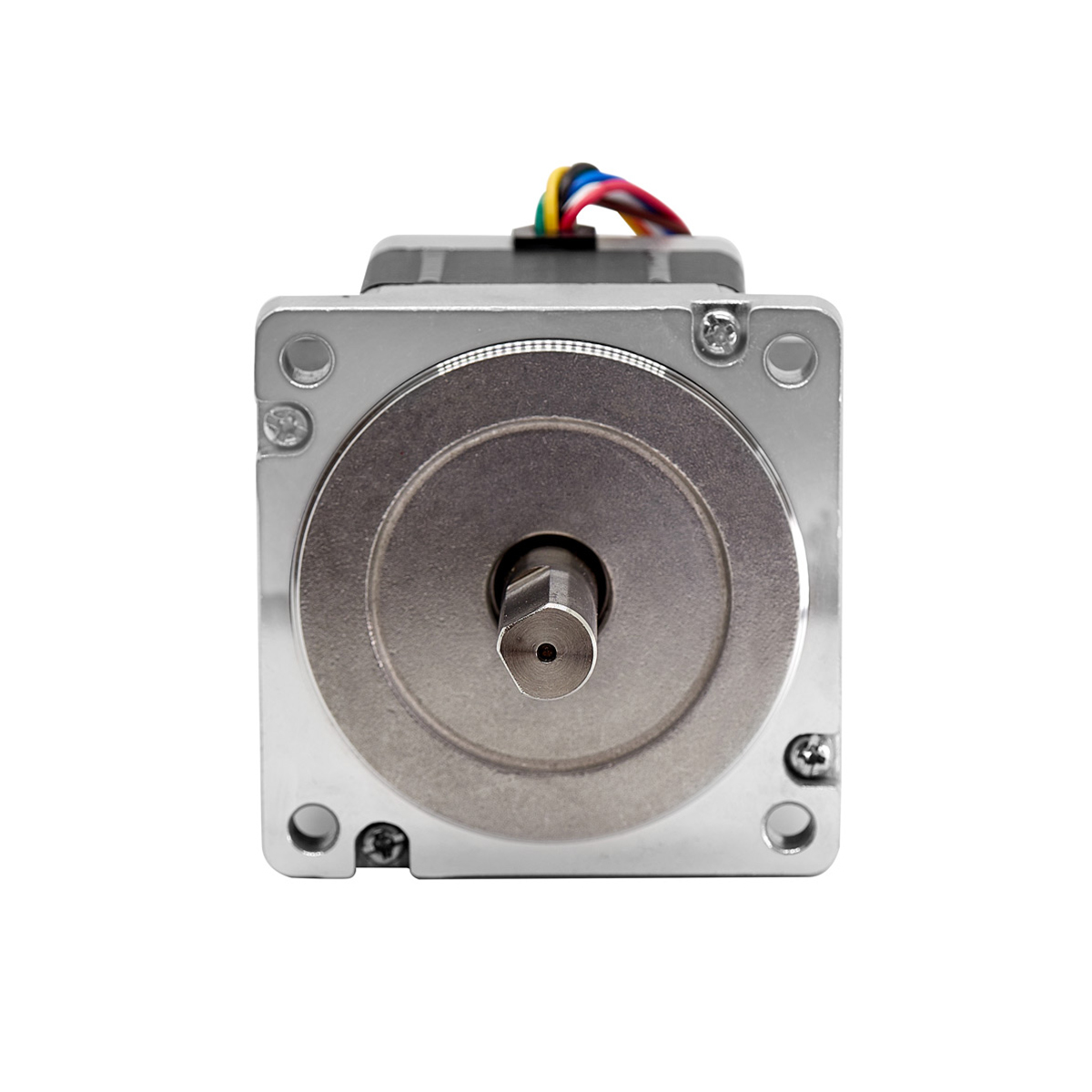

MS86-6803-View-003

Frame Size: NEMA 34


Step Angle: 1.8 Degrees


Holding Torque: 1260 in-ozs

Motor or Gearmotor:
Motors
Voltage:
DC
Winding:
Stepper
Preloader

Details & Specifications

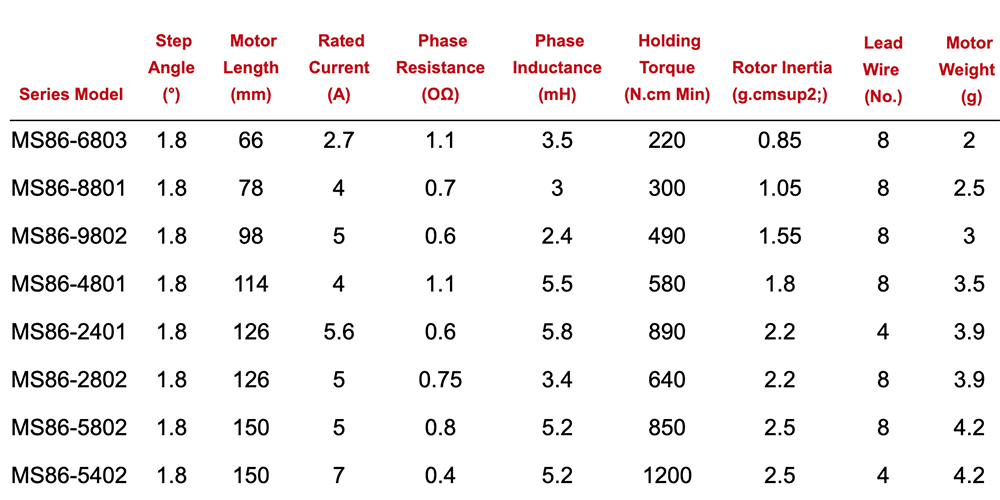

MS86 6803 charts 2phase 1.8° Stepper Motor Square Body

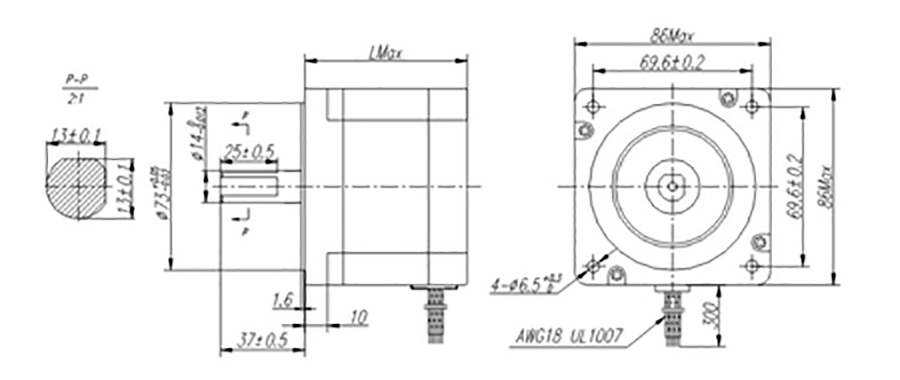

MS86 6803 detail 2phase 1.8° Stepper Motor Square Body

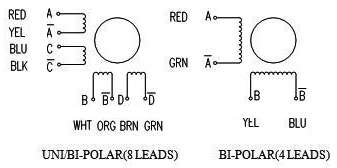

WIRING DIAGRAM

MS86 6803 wires 2phase 1.8° Stepper Motor Square Body
