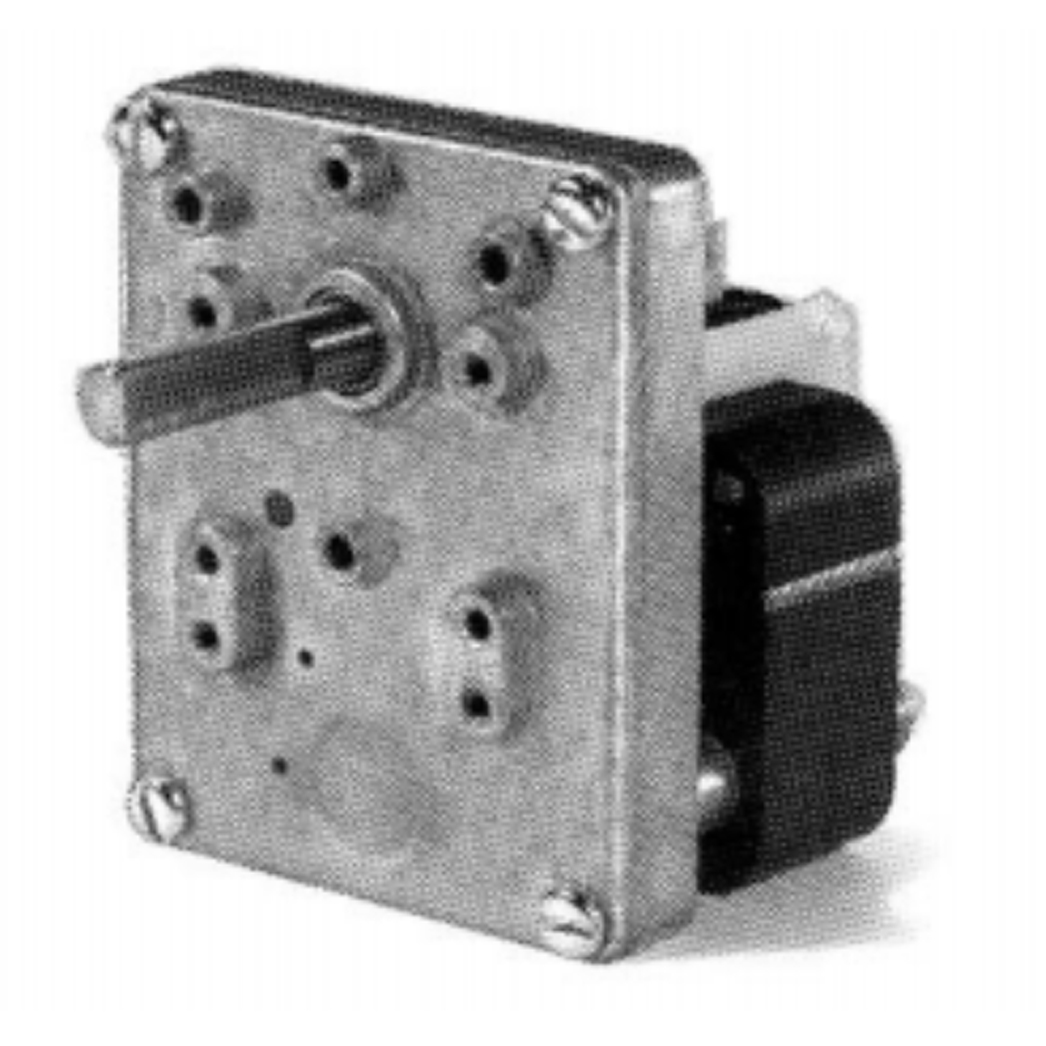

ZZM - AC Shaded Pole Gearmotor

ZZM - AC Shaded Pole Gearmotor
ZZM - AC Shaded Pole Gearmotor
ZZM - AC Shaded Pole Gearmotor-2

Voltage: 24 -240 VAC, 50/60 Hz


Rated Torque: 30 in-lbs

Motor or Gearmotor:
Gearmotors
Voltage:
AC
Gearing:
Parallel Shaft
Winding:
Shaded Pole

Preloader
Construction FeaturesShaded pole motor
Impedance or thermally protected
Class B insulation
Die cast gearbox and cover
Bronze sleeve bearings
Non-reversible
Custom duty cyclesOptionsLeads or terminals
Cooling fan
Brake or clutch
Low noise helical gears
Needle bearingsTypical Applications:
  • Vending machines
  • Brewer motors
  • Valve actuators
  • Ice dispensing mechanisms

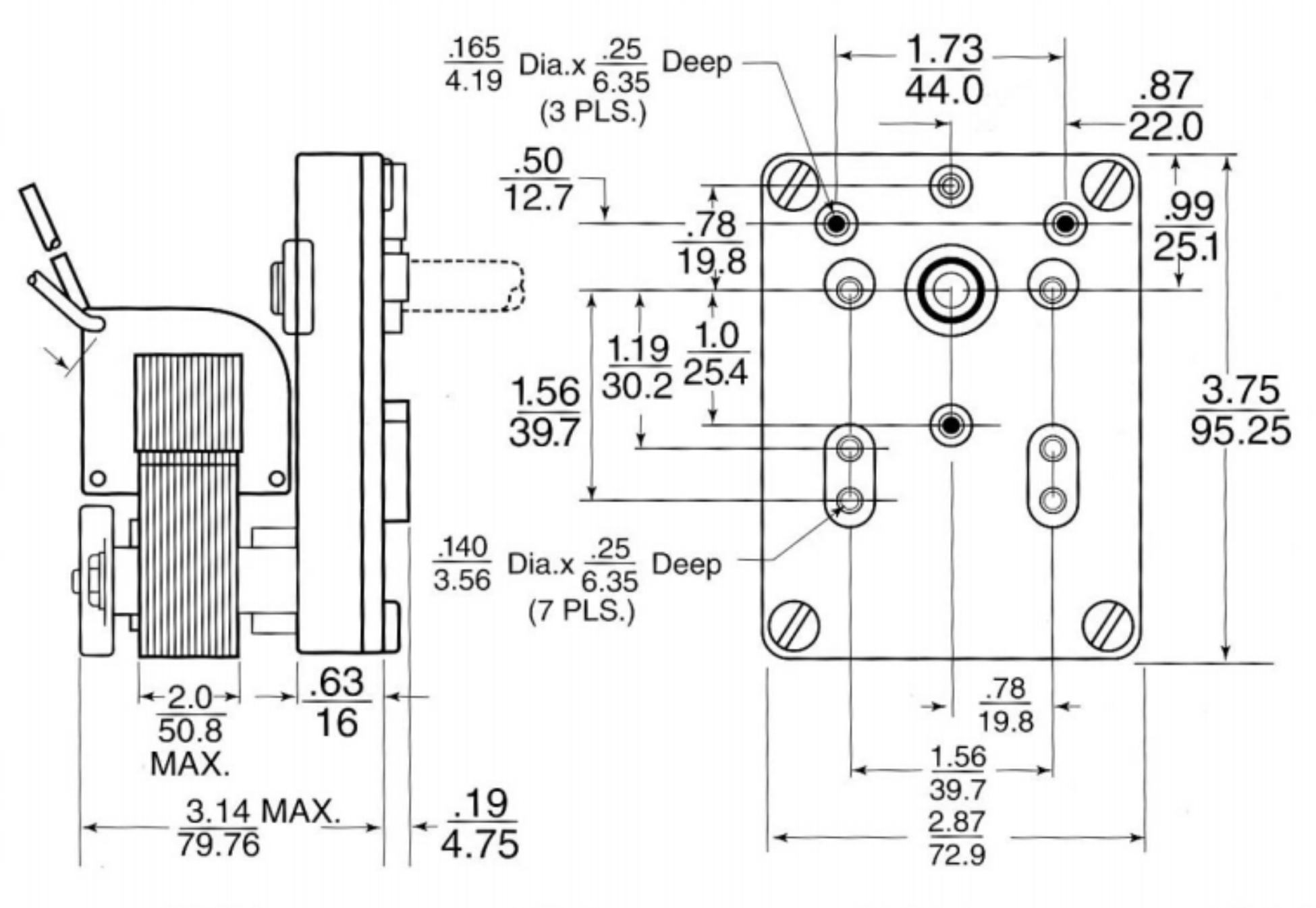

Output Shaft:
  • Diameter: .312in./7.9248mm or
    .375in./9.525
  • Custom length
  • Front or rear extension
