ZEM - AC Shaded Pole Gearmotor

ZEM-001x12001

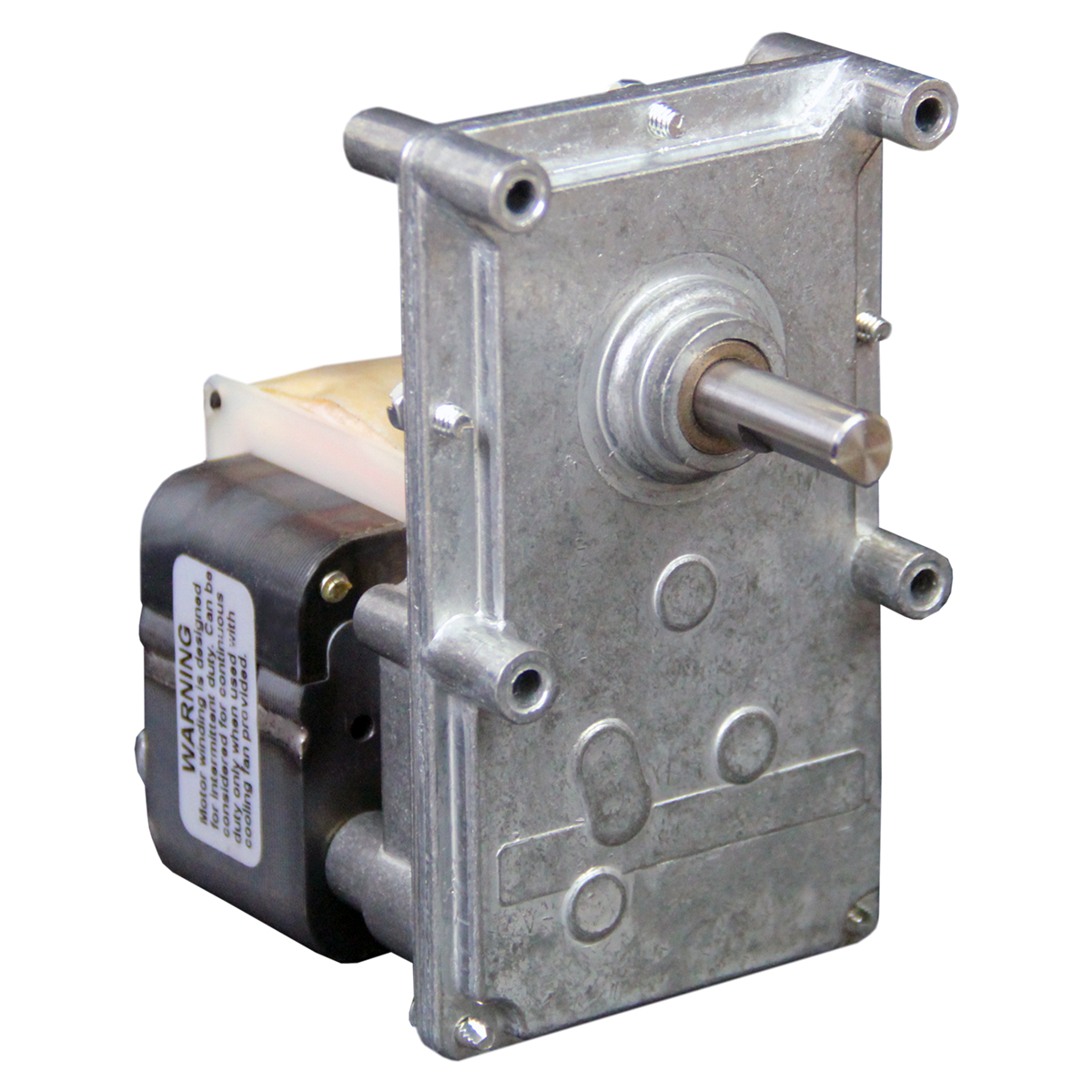

ZEM-001x12001
ZEM-002x12007
ZEM-003x12005

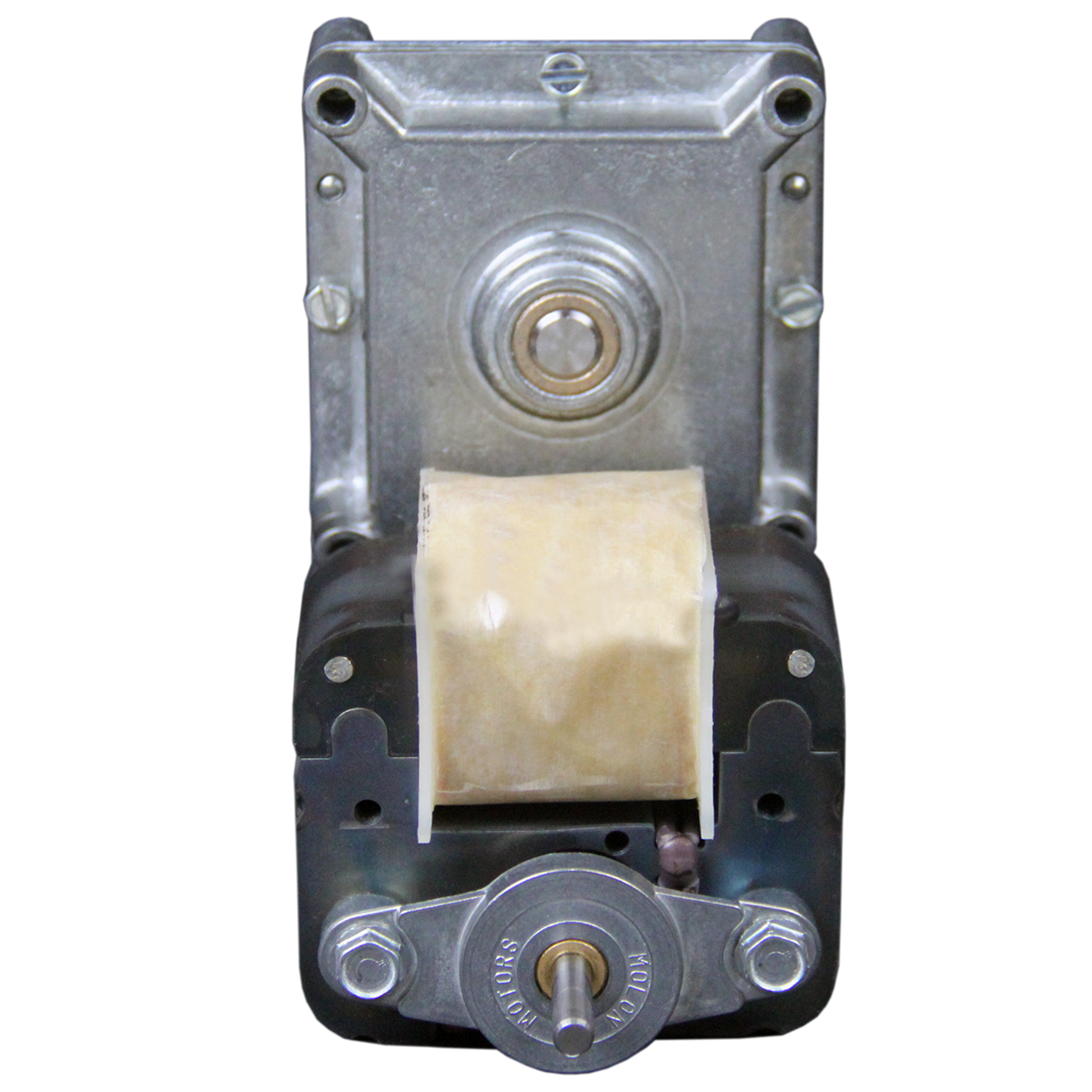

ZEM-004x12007

Voltage: 24 -240 VAC, 50/60 Hz


Rated Torque: 120 in-lbs

Motor or Gearmotor:
Gearmotors
Voltage:
AC
Gearing:
Parallel Shaft
Winding:
Shaded Pole
Stocked:
Standard

Preloader

115 Volt AC, 50/60 Hz Torque up to 120 in-lb

Construction FeaturesShaded pole motor
Thermally protected with slow blow fuse
Class B insulation
Die cast gearbox
Bronze sleeve bearings
Non-Reversible
Continuous duty
Phenolic, powdered metal, steel or delrin gears
Helical 1st stage gears
Grease lubricated
UL approved
Magnetic brake optional (see gearmotor options)Typical Applications:

  • Vending machine
  • Valve actuators
