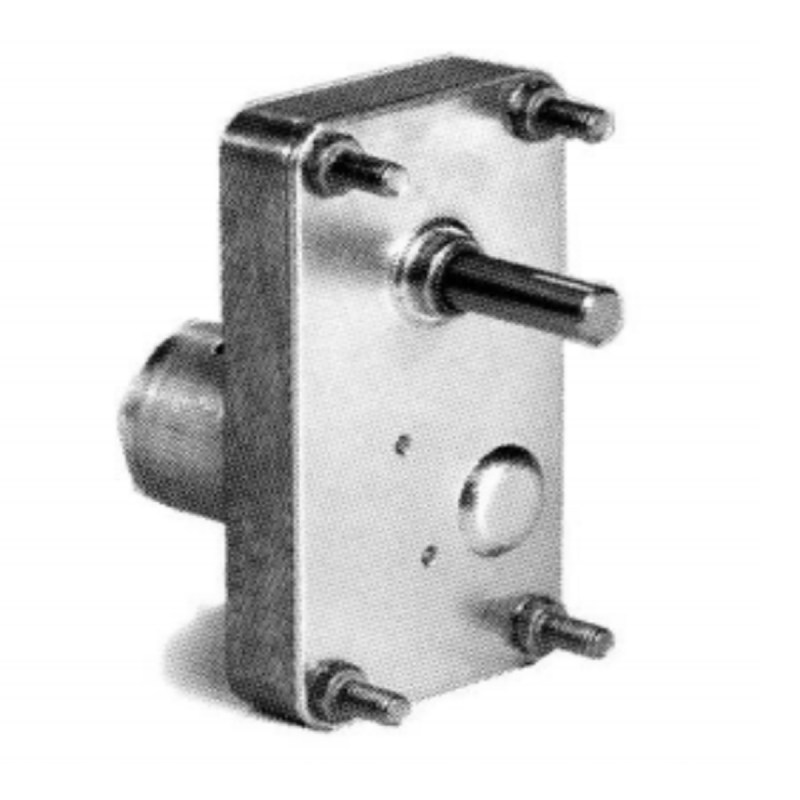

CTM - DC Permanent Magnet Gearmotor

CTM - DC Permanent Magnet Gearmotor

Voltage: 12 - 24 VDC


Torque: 40 in-lbs

Motor or Gearmotor:
Gearmotors
Voltage:
DC
Gearing:
Parallel Shaft
Winding:
PMDC

Preloader

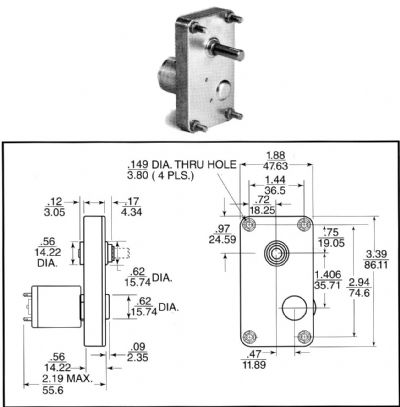

downloadcustom dc CTM uid1272012146172

6 - 24 Volt DC
Torque up to 40 in-lb

Construction FeaturesPermanent magnet motor
Die cast zinc gearbox
Delrin, sintered & steel spur gears
Bronze sleeve bearings
Reversible
Continuous dutyOptionsEMI/RFI suppression
Leads or terminal board
Custom p.c. board
Low noise helical gearingTypical Applications:

  • Medical equipment
  • Vending machines

Output Shaft:

  • Diameter: .250in./6.350mm,
    .312in./7.9248mm or
    .375in./9.525mm
  • Custom length
  • Front or rear extension
