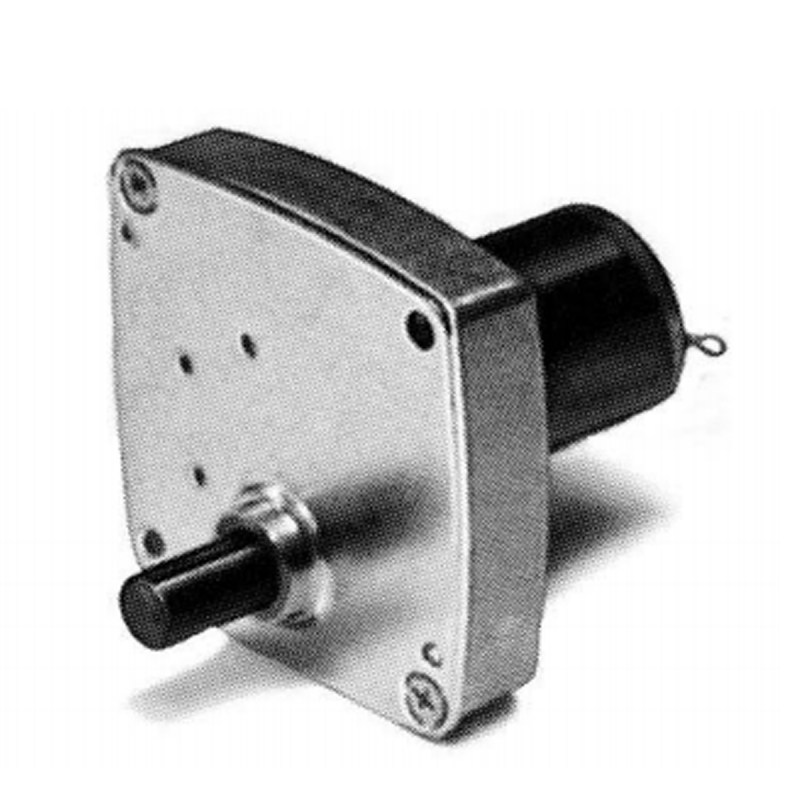

CIM - DC Permanent Magnet Gearmotor
Voltage: 12 - 24 VDC
Torque: 40 in-lbs
Details & Specifications
6 - 24 Volt DC
Torque up to 40 in-lb
Construction FeaturesPermanent magnet motor
Die cast zinc gearbox
Stamped Steel Cover
Delrin, sintered & steel spur gears
Bronze sleeve bearings
Reversible
Continuous dutyOptionsEMI/RFI suppression
Leads or terminal board
Custom p.c. board
Low noise helical gearingTypical Applications:
- Security camera drives
- Pump drives

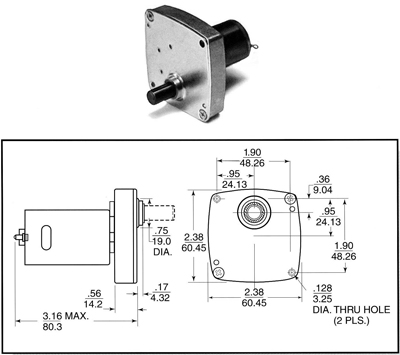

Output Shaft:
- Diameter: .250in./6.350mm or
.312in./7.9248mm - Custom length
- Front extension
