MC90 Permanent Split Capacitor Motor
Contact Molon Motors for FREE QUOTE
moto QUALITY IS OUR FUTURE

MM90 Permanent Magnet Motor

CMO-12C350-View-001
CMO-12C350-View-001

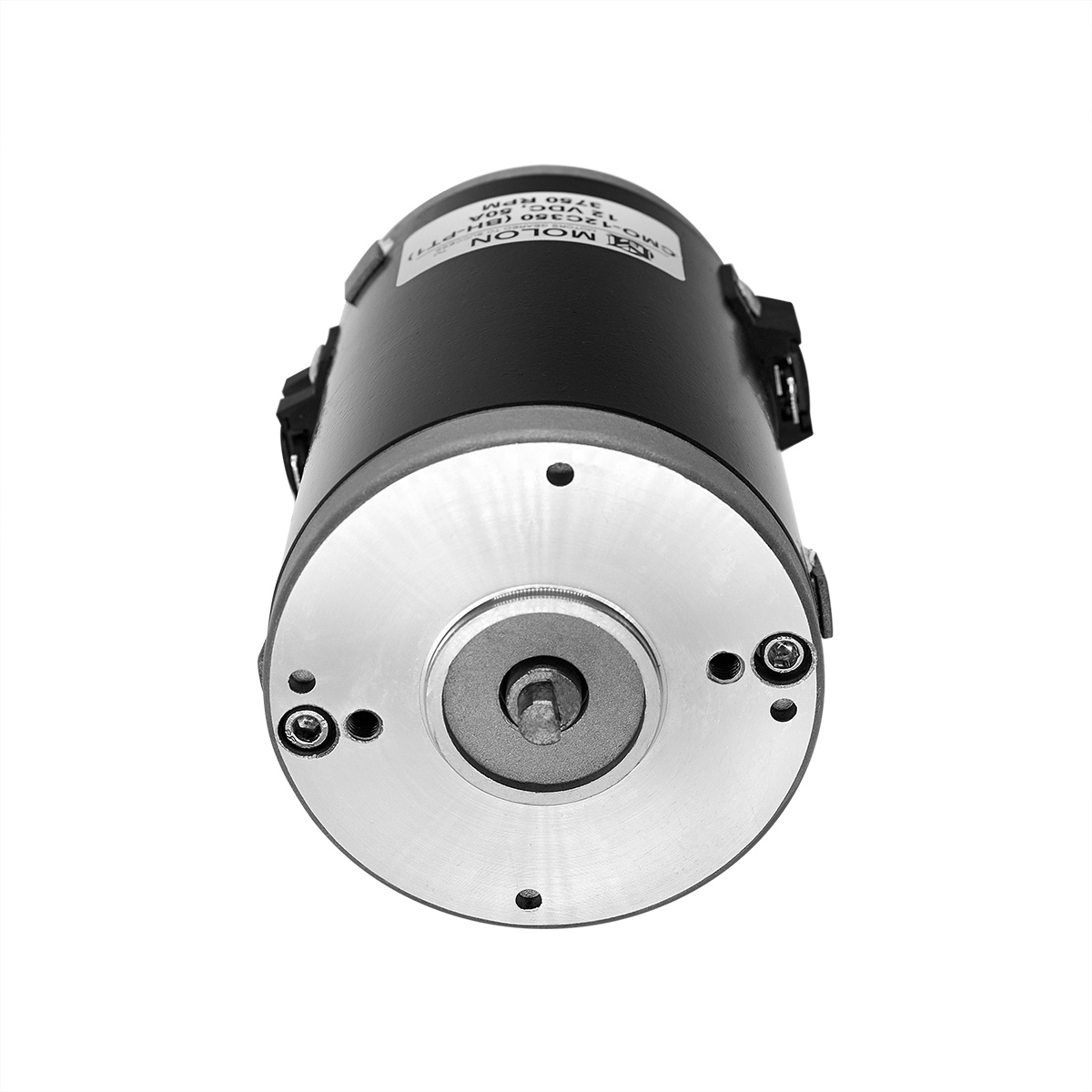

CMO-12C350-View-003

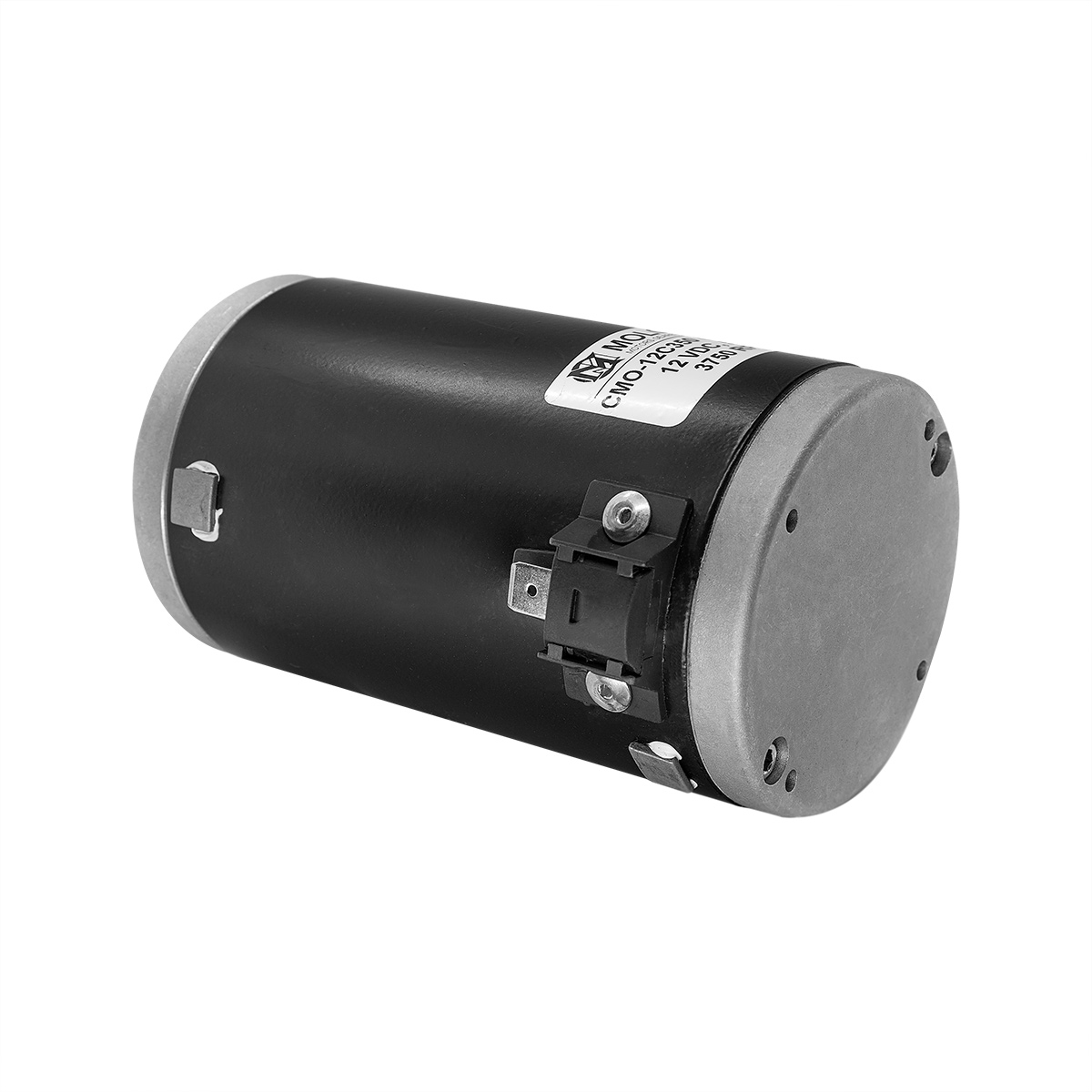

CMO-12C350-View-002

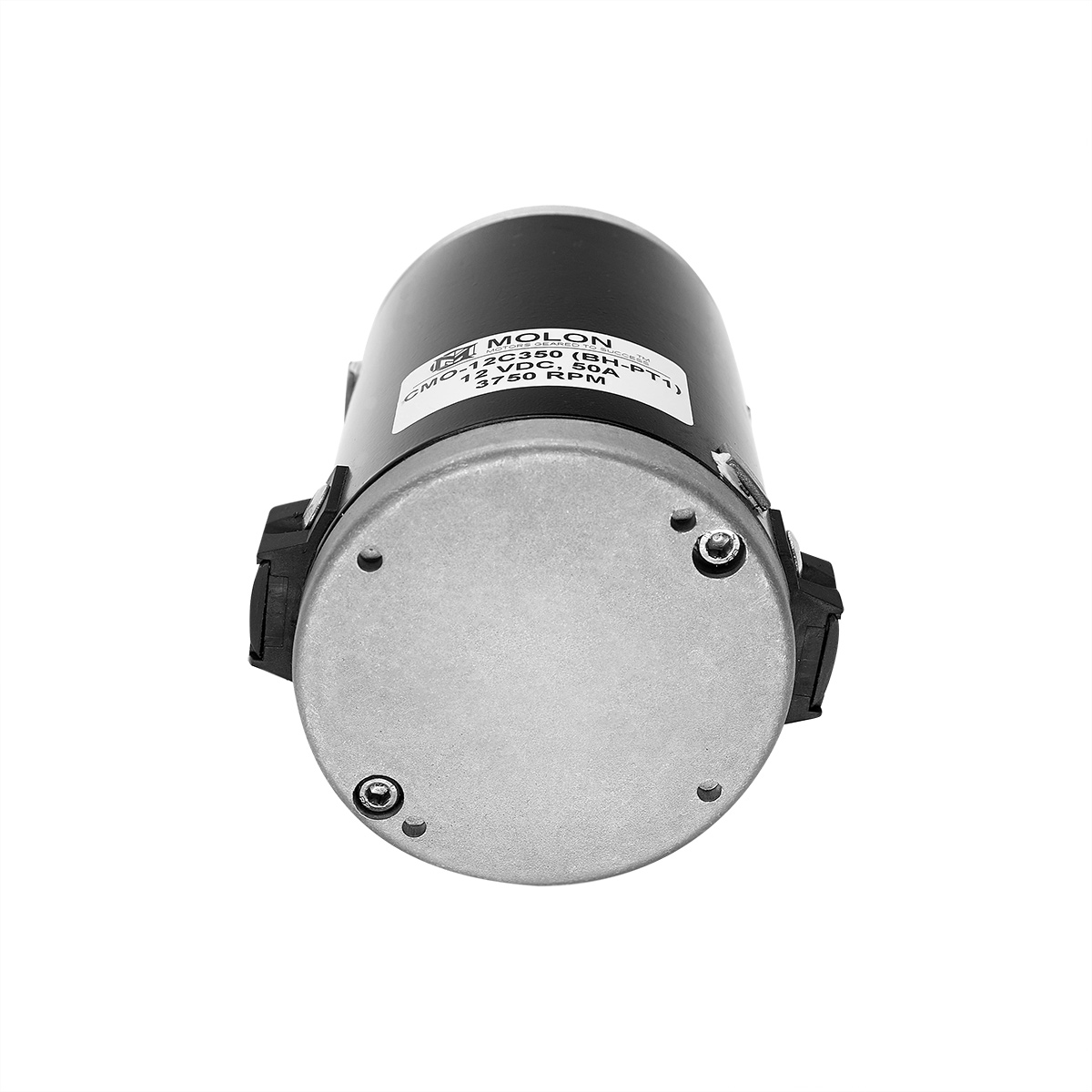

CMO-12C350-View-004

Voltage: 12 – 48 VDC


Rated Torque: 7.4 in-lbs

Motor or Gearmotor:
Motors
Voltage:
DC
Winding:
PMDC

Preloader

*Customer can specify lead length, shaft diameter, length and voltages: 12 - 48 VDC

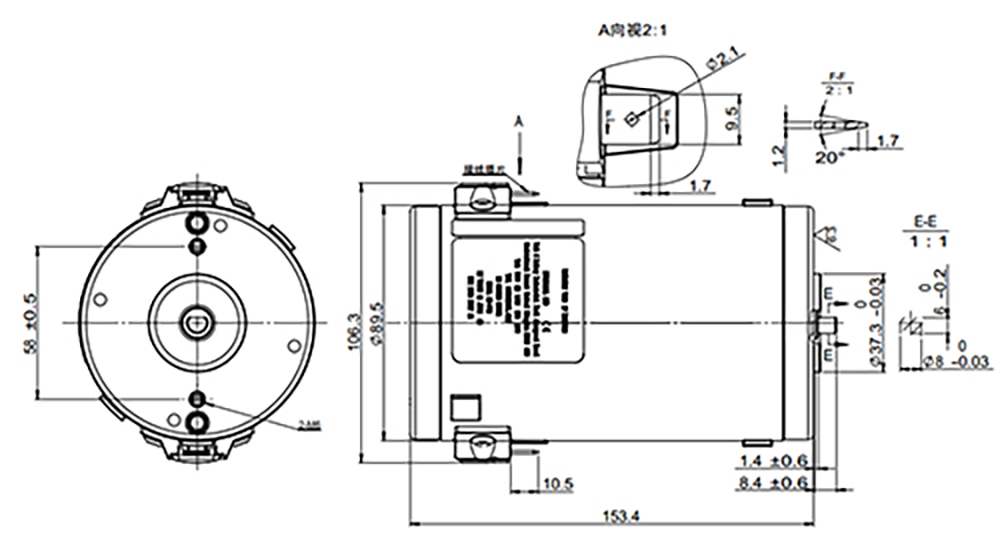

MM90 1201 V DETAILMM90-1201-V

RATED VOLTAGE 12 – 48 VDC
NO-LOAD CURRENT 3±1A
NO-LOAD SPEED 4900±300RPM
RATED CURRENT 16±1A
RATED OUT POWER 110W
RATED TORQUE 7.4 in-lbs

MM90-300-V

RATED VOLTAGE 24V DC
NO-LOAD CURRENT 2.2±1A
NO-LOAD SPEED 5400±300RPM
RATED CURRENT 20±1A
RATED OUT POWER 300W
RATED TORQUE 0.84N.m
