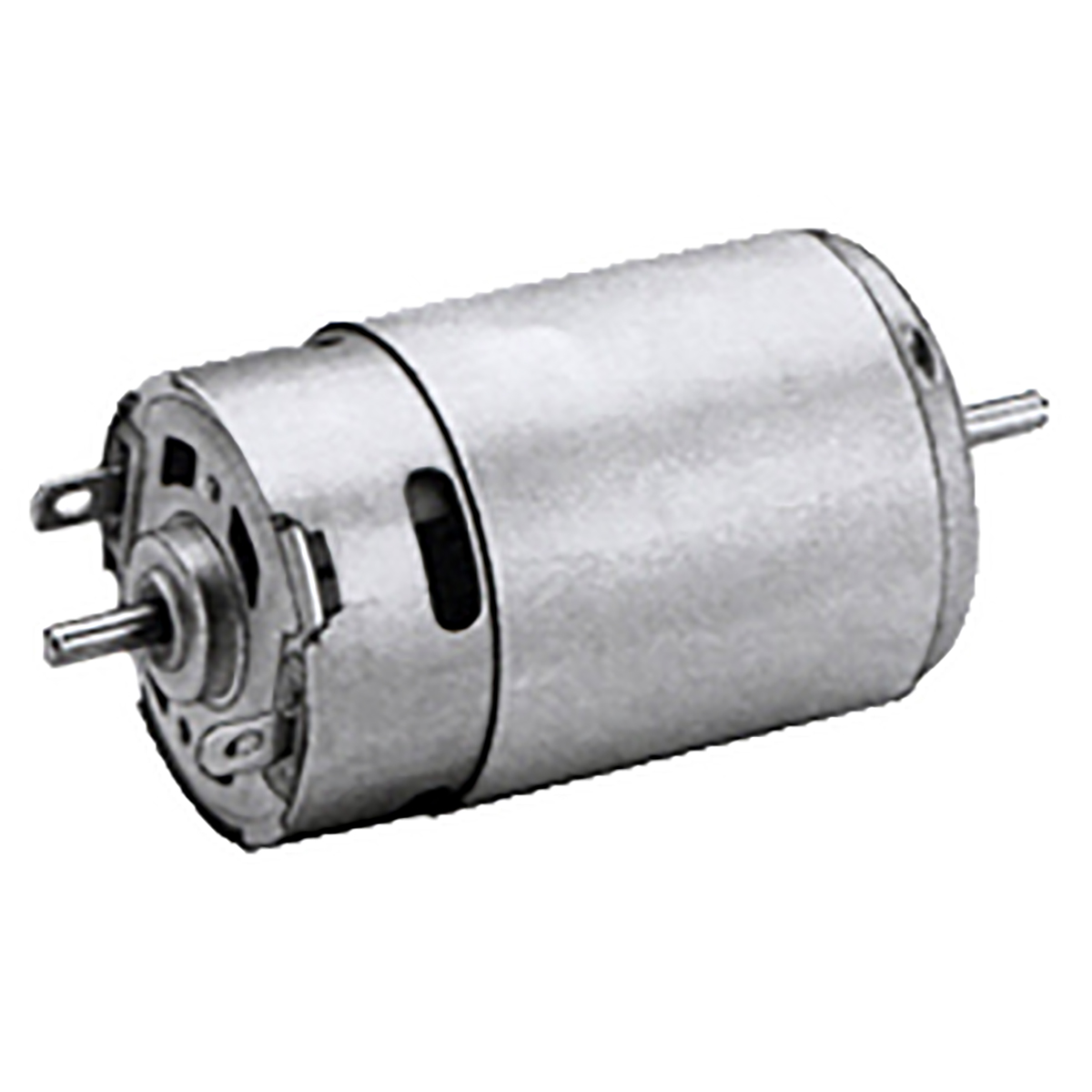

CMO-2409 - DC Permanent Magnet Motor

CMO-Molon9
CMO-Molon9
CMO-1200_uid32120121129121 (1)

Motor or Gearmotor:
Motors
Voltage:
DC
Winding:
PMDC

Preloader

download

24Volt PMDC Motor
Compact Reversible

Construction FeaturesReversible
Long life, 1000 hr+
Low cost in quantity
Wide temperature range, -20 to 250 deg F
Optional low temp lube, -60 deg F
Continuous or intermittent duty
Optional varistor for electronic noise reduction
Prelubed bushings
Optional straight knurl on shaftTypical Applications:

  • Pumps
  • Espresso mixer
  • High speed applications

Motor Specifications:

  • 6 to 24 volts DC
  • 4000 to 24,000 RPM
  • 0.50 to 7.50 in-oz
  • Bidirectional

OptionsOptional PC boards
Optional rectifier for AC service
Optional pinion or other drive element
Optional mount plate of easy replacementFrame and Shaft Sizes:

  • Small: 27.7 mm dia/2.30 mm shaft dia.
    (1.091 in. dia./.0906 in. dia.)
  • Large: 35.8 mm dia/3.17 mm shaft dia.
    (1.409 in. dia./.1248 in. dia.)



  Baseline 24 VDC Motors – Most Available from Stock
  Optional 12V, 24V Rectified AC (Full wave filtered DC)



Ident
CMO-
Speed nl
RPM
Speed max eff
RPM
Torque max eff
In-oz
Current max eff
Amp
Size
2409 10150 7917 .539 0.258 SM
2411 10200 7388 .620 0.275 SM
2412 14500 10900 1.50 0.50 SM
2413 19500 14600 1.80 1.00 SM
2414 7300 6400 3.76 1.07 LG
2415 6600 5420 0.89 0.25 LG
2416 11000 8300 0.51 0.40 SM
2417 8500 7130 2.90 0.94 LG
2418 4150 3430 2.64 0.43 LG
2421 6600 5420 0.89 0.25 SM
2423 8500 7130 2.90 0.94 LG
2425 4537 3312 0.32 0.08 SM
2426 8000 6000 2.62 1.20 LG
2427 10355 7988 0.58 0.27 SM
