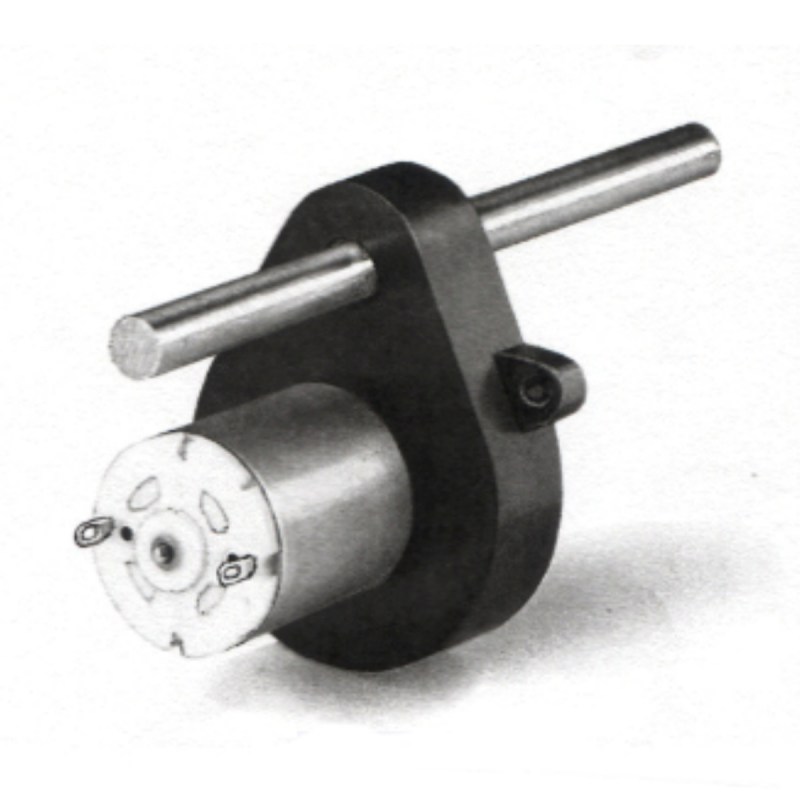

CTD - DC Permanent Magnet Gearmotor

Details & Specifications

Compact Reversible
DC Gear Motor

Construction FeaturesReversible, pear shape
Long life DC motor
Low cost plastic gear case and gears
Continuous or intermittent duty
Optional leads or connectors
Bronze brushingsTypical Applications:

• Vending machines
• Business machines

Motor Specifications:

• DC motor bi-directional
• 6 to 24 volts DC
• Optional PC board
• Optional rectifier

Gear Reducer:

• Output torque to 10 in-lbs
• Output speed 20 to 250 RPM
• Delrin gears
• ABS gear case
• Steel gear pins

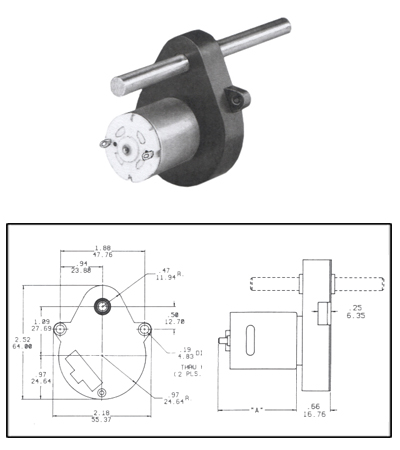

Shaft:

• Diameter: .187/4.76, .250in./6.35, .312/7.94 (in/mm)
• Custom length
• Extend either side or both
