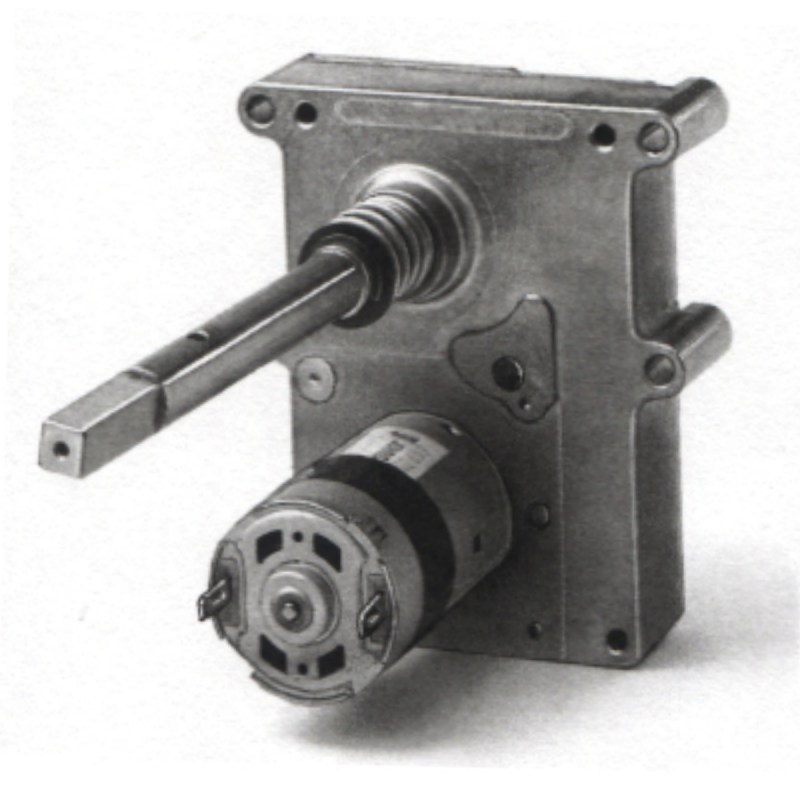

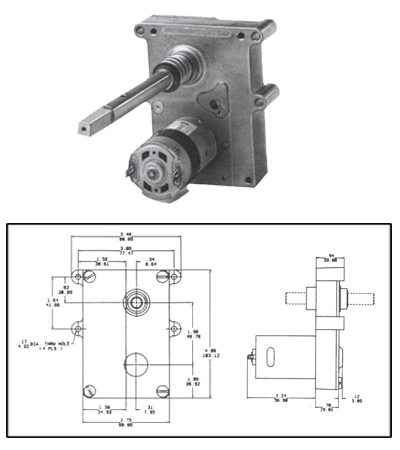

CAM - DC Permanent Magnet Gearmotor

Details & Specifications

Extra Heavy Duty
Reversible DC Gear Motor

Construction FeaturesExtra heavy duty
Reversible
Long life DC motor
Rugged zinc die cast gear case
Wide speed range
Continuous or intermittent duty
Optional leads and connectors
Heavy duty bronze brushingsTypical Applications:

• Valve actuators
• Conveyors
• Machine tools
• Vending machines
• Appliances
• Ice crusher

Motor Specifications:

• DC motor bi-directional
• 6 to 24 volts DC
• Optional PC board
• Optional rectifier

Gear Reducer:

• Output torque to 300 in-lb
• Output speed 2 to 1000 RPM
• Delrin, sintered or steel spur gears
• Hardened steel pins
• Optional switch mount

Shaft:

• Diameter: .250in./6.35, .312/7.94, .375/9.53, .500/12.7 (in/mm)
• Custom length
• Extend either side or both
