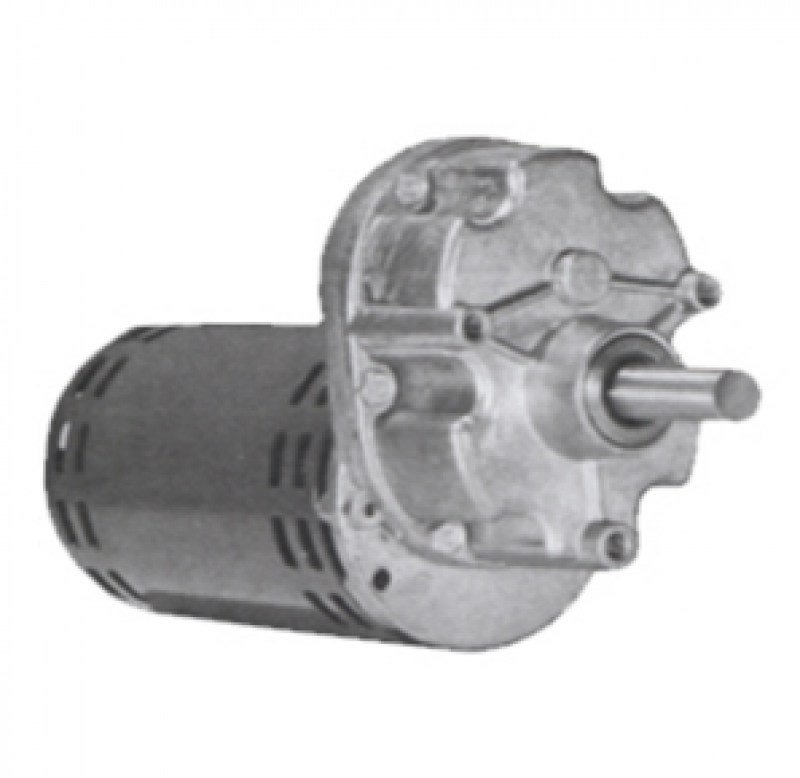

Model 101 - AC Induction Motor
High Torque
Heavy Duty Gear Motor
Motor Specifications:
- Input motor rated 1/50 to 1/8 HP
- Powered by 2 & 4 pole; capacitor start induction run, split phase, permanent split capacitor, polyphase (2 pole only), shaded pole, reluctance type synchronous motors.
- Voltages: 6 to 220 volts, 50 or 60 Hz
- Open ventilated, continuous duty.
- Available with automatic inherent thermal winding protection.

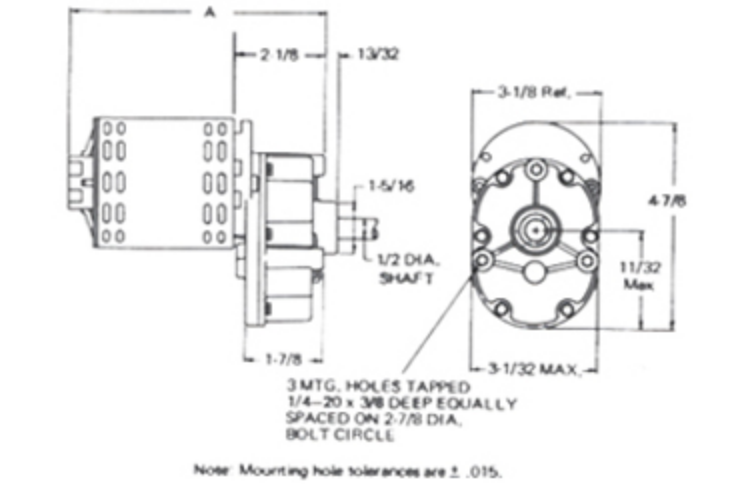

- Motor Frame: Diameter - 3"
- Designed for maximum efficiency, high starting torque and long life.
Gear Reducer:
- Helical first gear for low sound level application.
- Oil sealed gear reducer for extended life.
- Precision cut hardened steel wide face gears.
- Sleeve or needle bearings in output shaft for overhung loads.
- Hardened heavy duty steel gear pins and rugged zinc diecast gear case.
- Output speed range 3 to 850 RPM.
- Output shaft length per application.
- This heavy duty gear reducer construction incorporates a two gear shaft design for max. life under high torque, heavy stress, and max. shock loads.
Recommended for:
- Business Equipment
- Duplicating Machines
- Appliances
- Ice Making Equipment
- Machine Tool Equipment
- Photographic Equipment
- Marking Equipment
