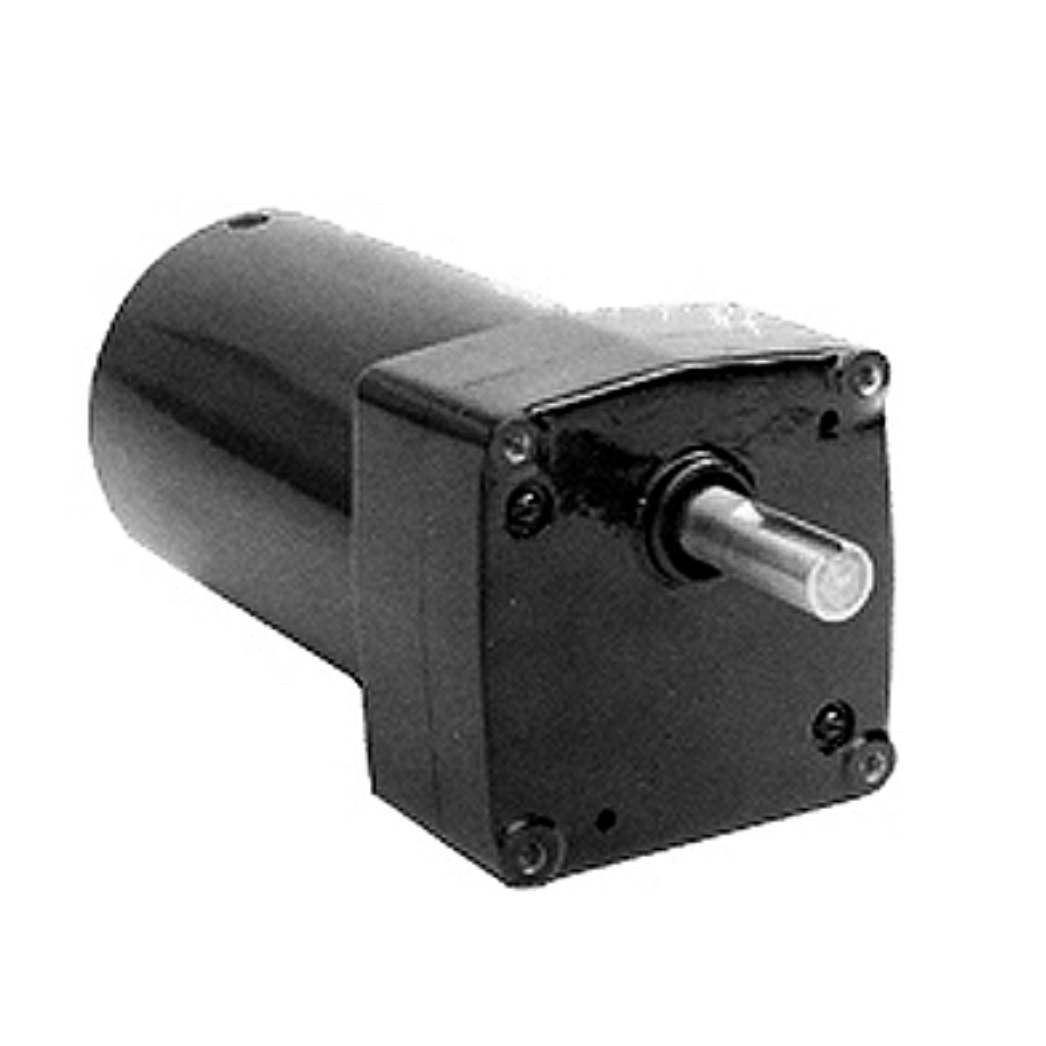

Reversible Gear Motors
4 to 150 RPM at 60Hz

Construction FeaturesHeavy duty constructed gear
Open ventilated and totally enclosed, non-ventilated continuous duty
Available with automatic thermal overload protection

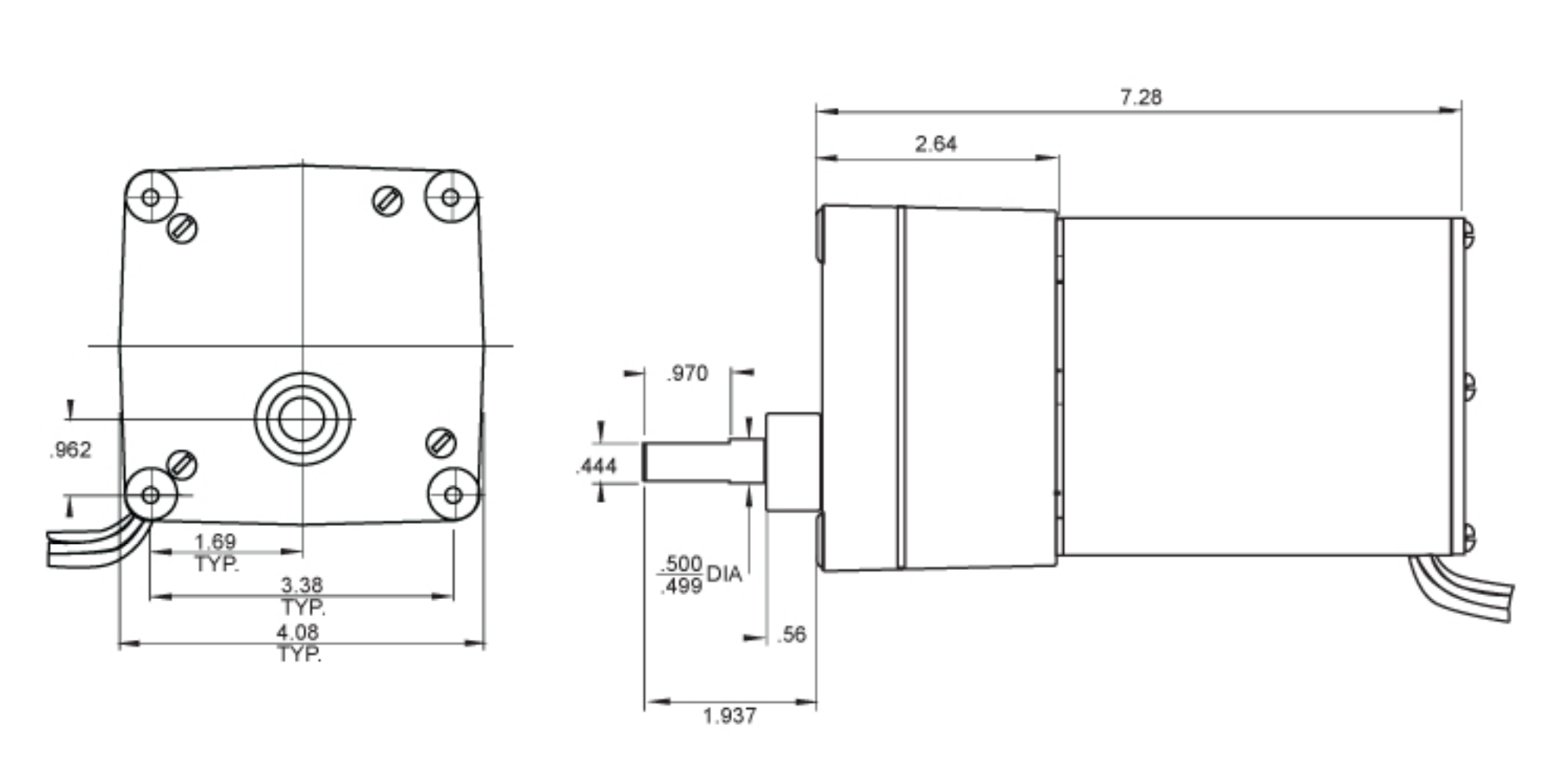

Motor frame diameter - 3.83"
Designed for maximum efficiency, high starting torque and long life
UL and CSA listedTypical Applications:

• Business equipment
• Duplicating machines
• Appliances
• Hospital equipment

Motor Specifications:

• Input motor H.P. to 1/4
• 2 pole or 4 pole, split phase, permanent split capacitor and 3-phase designs
• 115 to 220 volts, 50-60Hz

Gear Reducer:

• Grease/oil lubricated gear reducer for extended life
• Precision cut steel wide face gears
• Needle bearings standard on output shaft...
• Die cast gear case
• Output speed range 5 to 160 RPM (other speeds available upon request)

Optional Features:Variations in output shaft, gear ratios, motor windings, and motor types available for volume users
