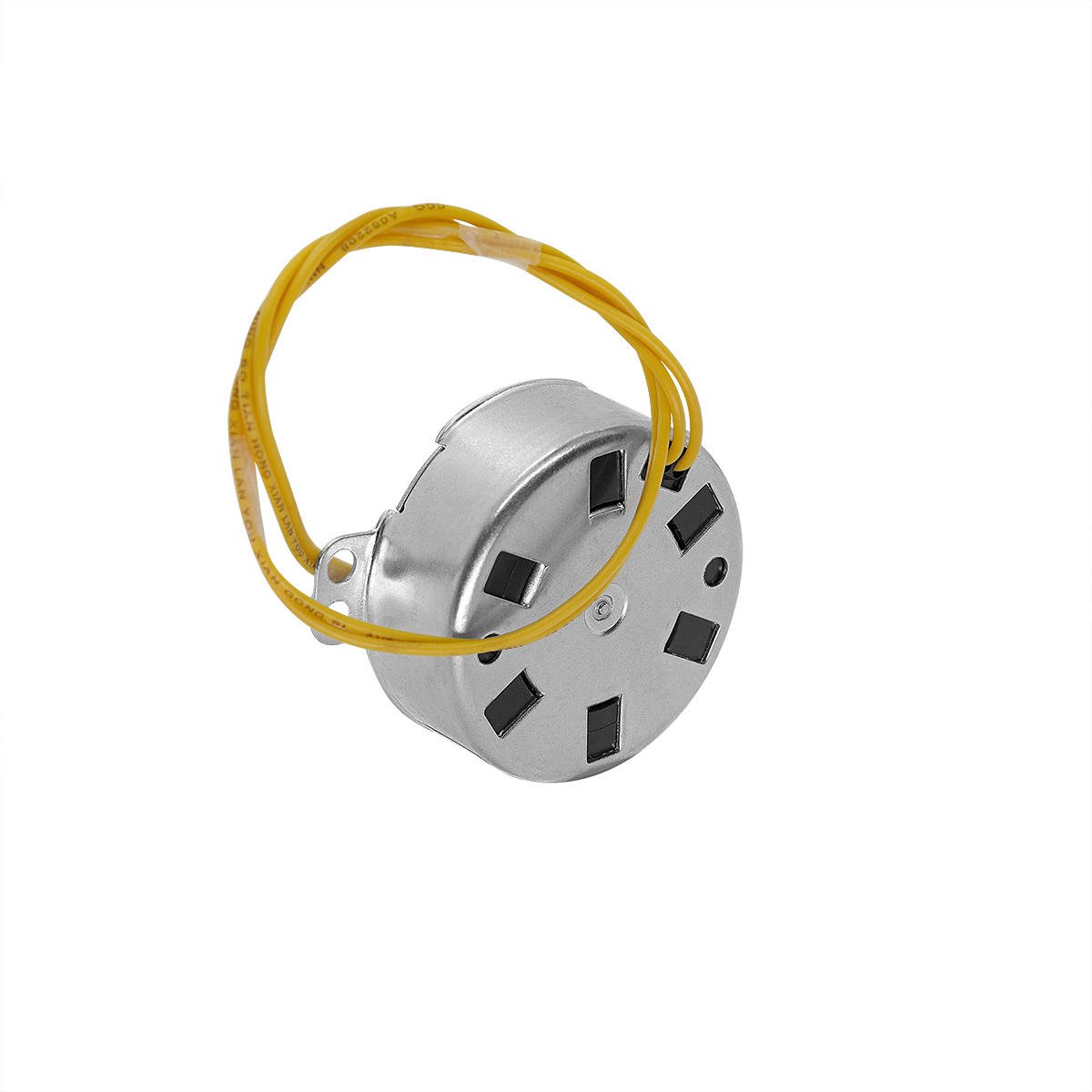

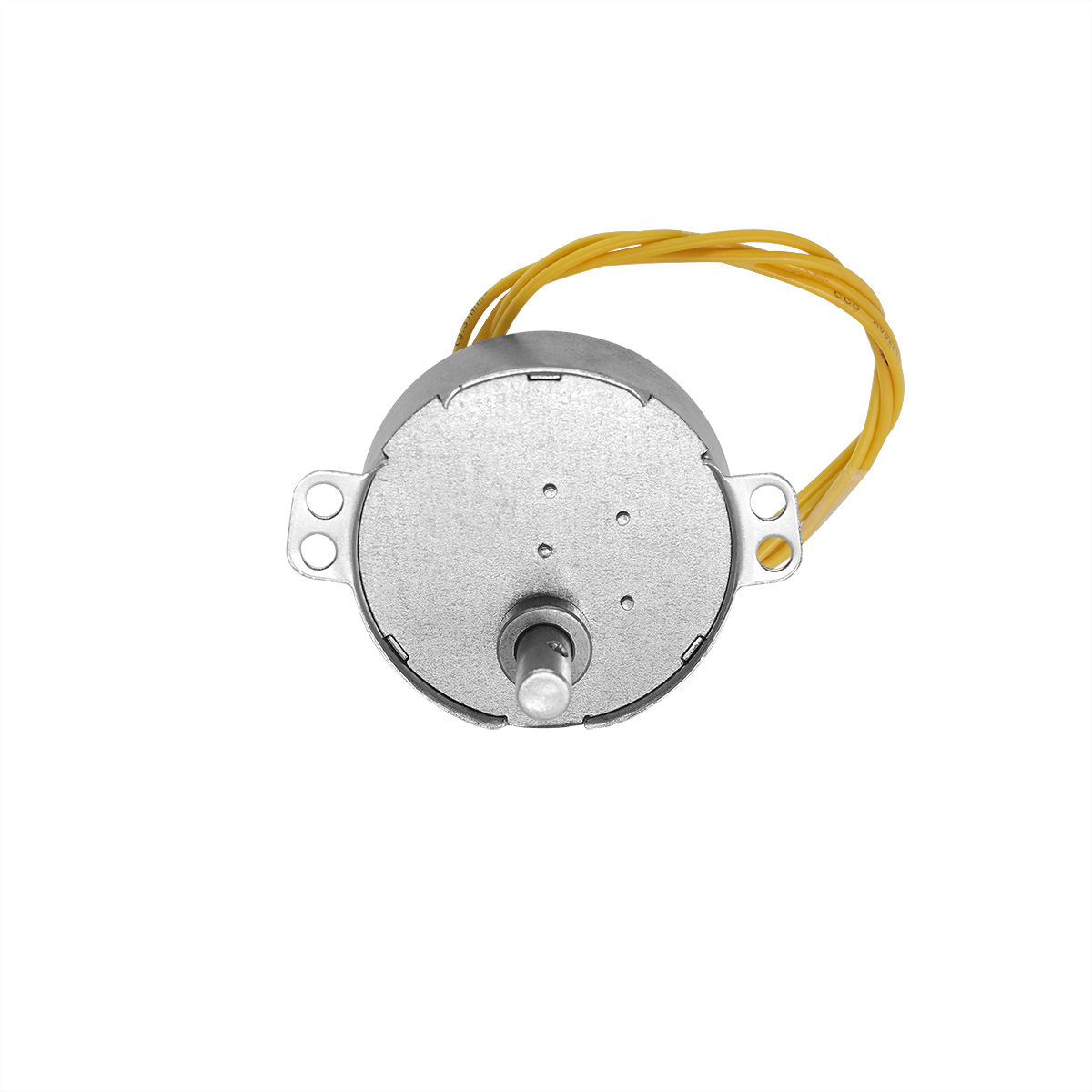

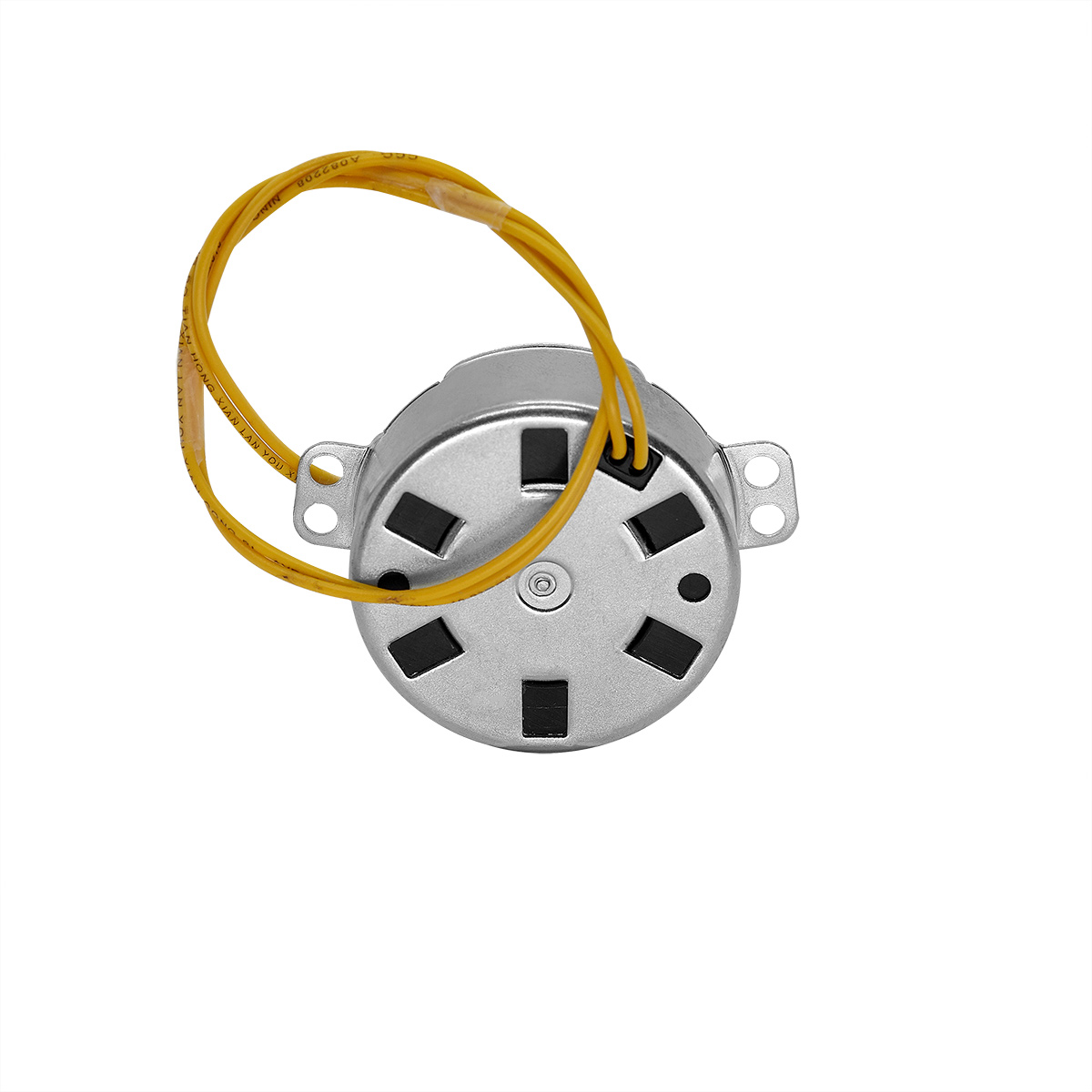

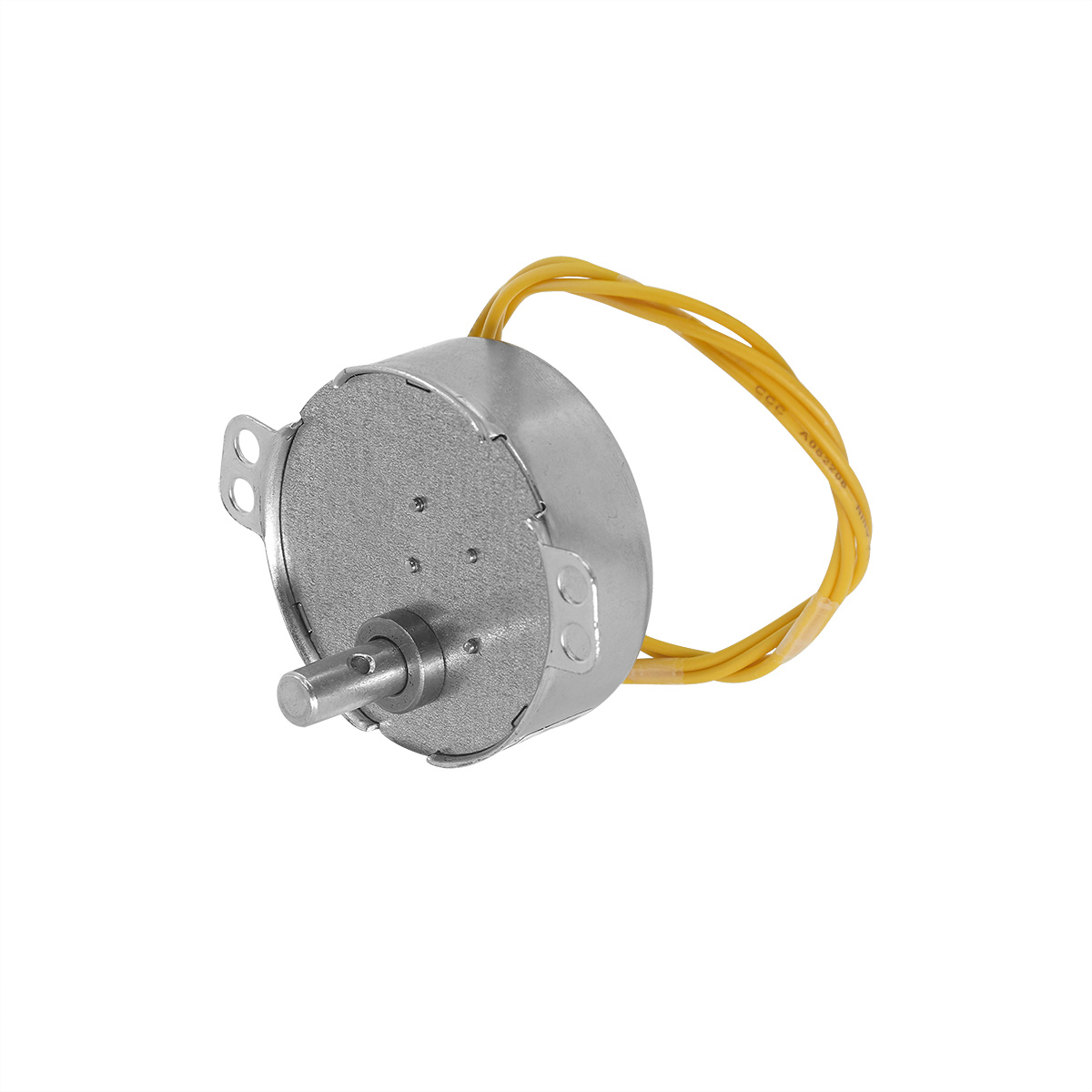

MPY49B - Permanent Split Capacitor (PSC) Synchronous Gearmotor
Voltage: 12 - 220 VAC, 50/60 Hz
Rated Torque: 17 in-lbs
Speed Range: 1.1 - 53.3 RPM
Details & Specifications
*Customer can specify lead length, shaft diameter, length and voltages: 115 - 230 VAC / 50 - 60 HZ / 12 - 24 - 48 VDC
Description:
Main as the power of electric fan, warmer, lamps and lanterns, antenna, instrument, Flow frame and light-picture. Note:1/2/3 is mean the change of the motor height.
This motor can be designed and produced according to your requests, Smoothing in operated, strong loading capacity, fast startup
Note:
1.Color & length of conducting wire can be made according to the requirement of users.
2.The output shaft can be made according to The consumers need.
3.Working voltages and frequencies can be made as per user's requirements.
This motor is mainly used on Air Conditioner,Microwave & Elec. Oven , Water Cooling & Heating Fan,Display Turntable, Toys, lamps, Christmas trees, it can also be used as the power of other constant speed drive devices.
Motor Specifications:

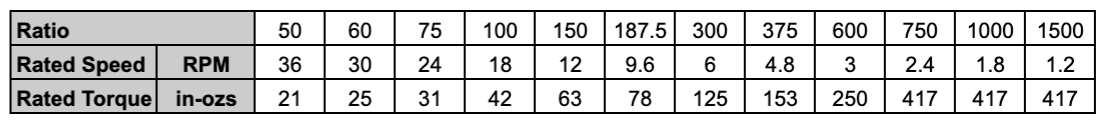

Gearbox Specifications
