MPC90 - Permanent Split Capacitor (PSC) Gearmotor
Voltage: 110 - 220 VAC, 50/60 Hz

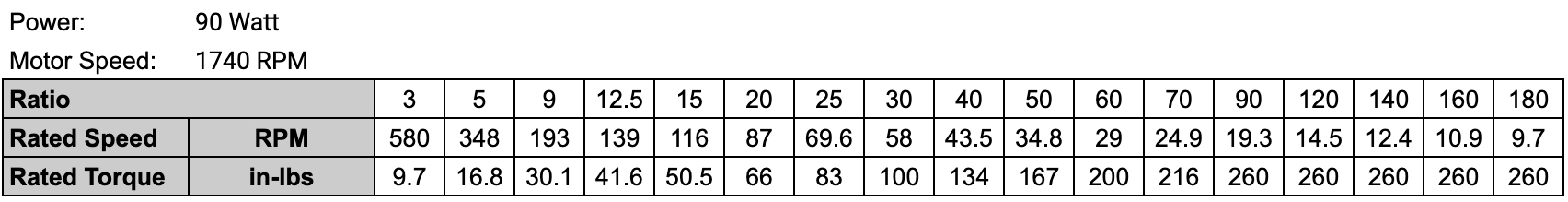

Rated Torque: 260 in-lbs
Details & Specifications
Construction Features:
- Class B insulation
- Aluminum construction for strength and heat dissipation
- Ball bearings used for the motor and gearbox
- Fixed speed, reliable, low noise and long life
- Permanently grease lubricated gearbox
- Reversible
- Continuous duty
Applications:
- Office equipment
- Conveyor drive
- Valve actuators
- Food machinery
- Medical equipment
- Industrial machinery
Options:
- Output Shaft
- Leads
- Voltage/frequency
- Gearbox lubrication
- Motor shaft extension
- 40W and 60W

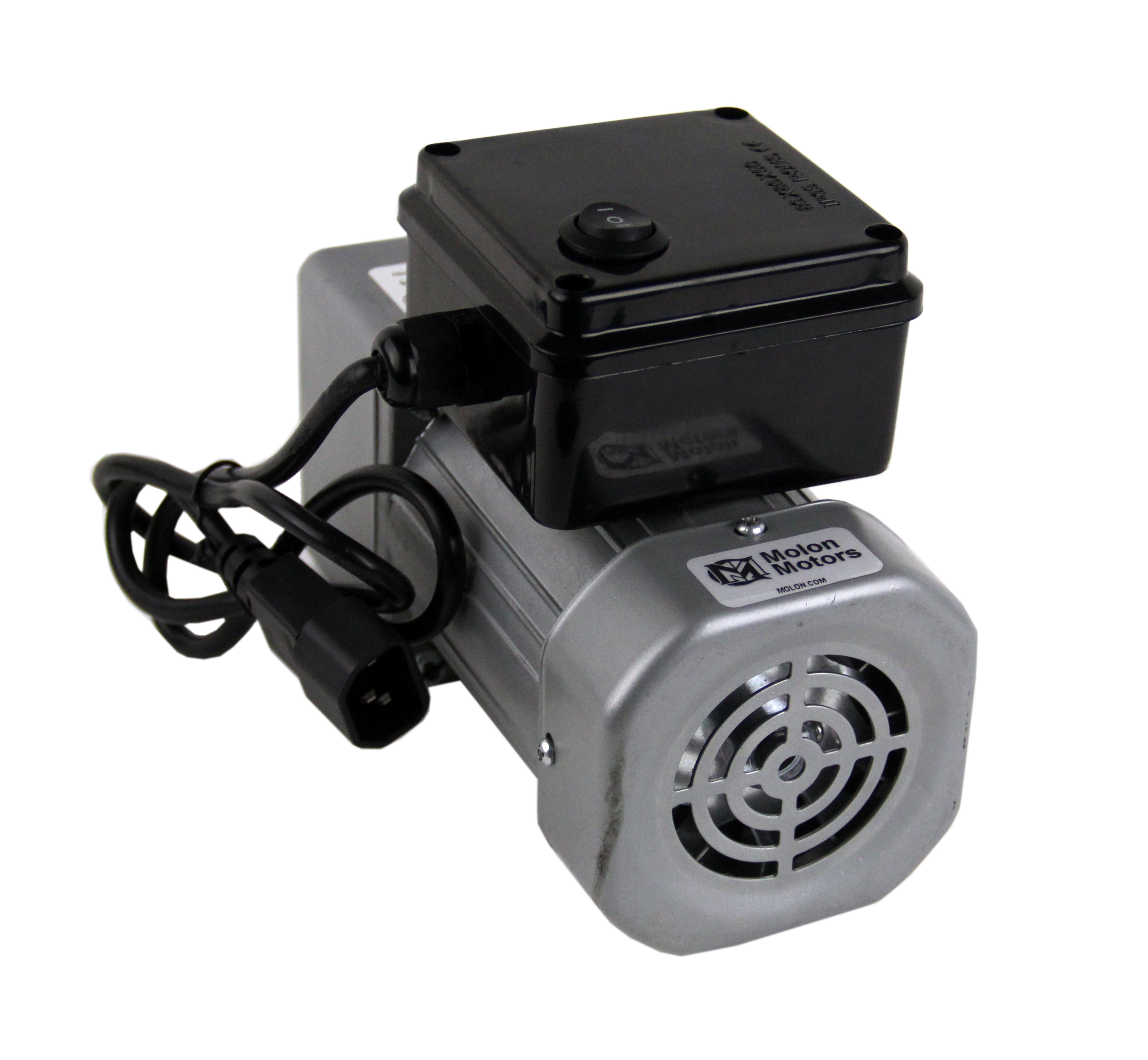

- Mounted terminal box w/capacitor
