CHM - DC Permanent Magnet Gearmotor

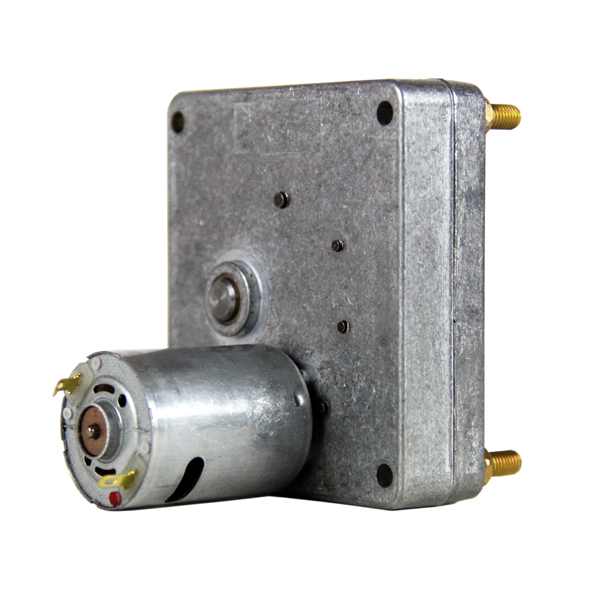

12 and 24 Volt DC CHM1212 DC Permanent Magnet Gearmotor

Torque up to 50 in-lb

Construction Features

  • Permanent magnet motor
  • Die cast zinc gearbox
  • Powdered metal, steel or delrin gears
  • Bronze sleeve bearings
  • Reversible
  • Continuous duty
  • Grease Lubricated
  • Integral RFI/EMI Suppression on all 24-volt motors

Typical Applications:

  • Industrial and agricultural valve actuators

Molon Part No.

Torque
(in. - lb.)     (in.-oz.)
F/LSpeed
(RPM)
F/L
Amps
Output Shaft Location Length
"L" (in.)

Distributor

12 VOLT


CHM-1201-8M  50 800 .6 0.12 A 2.45  AMAZON BUY NOW 200
CHM-1202-2M 50 800 1.3 0.45 A 2.65 AMAZON BUY NOW 200
CHM-1203-1M 40 640 4 0.68 A 2.45

AMAZON BUY NOW 200

CHM-1209-4M 40 640 8 0.73 A 3.17

AMAZON BUY NOW 200

CHM-1212-1M 40 640 12 1.30 A 2.65

AMAZON BUY NOW 200

CHM-1217-1M 25 400 16 1.40 A

2.65


CHM-1225-1M 20 320 25 1.30 A 2.65 AMAZON BUY NOW 200
CHM-1250-1M 10 160 50 1.20 B 2.65
 24 VOLT
CHM-2401-1M 50 800 1.2 0.14 A 2.45 AMAZON BUY NOW 200
CHM-2405-1M 50 800 4 0.38 A 2.45 AMAZON BUY NOW 200
CHM-2409-1M 34 544 8 0.45 A 2.65 AMAZON BUY NOW 200
CHM-2413-1M 24 384 12 0.42 A 2.65
CHM-2418-3M 17 275 17 0.45 A 2.65
CHM-2418-3M 17 275 17 0.45 A 2.65
CHM-2425-1M 50 800 25 1.08 A 3.17
CHM-2445-1M 28 448 47 1.08 B 3.15
