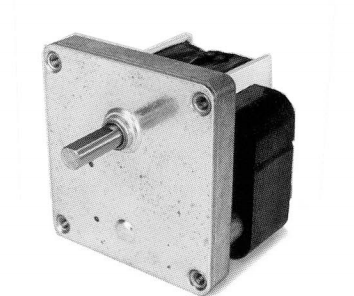

HGM AC Shaded Pole Gearmotor w Brakedownload

115 Volt AC, 50/60 Hz
Torque up to 50 in-lb

Construction Features

• Shaded pole motor
• Impedance protected
• Class B insulation
• Die cast gearbox
• Stamped steel cover
• Bronze sleeve bearings
• Non-reversible
• Continuous duty
• Delrin & powdered metal gears
• Helical 1st stage gears
• Grease Lubricated
• Magnetic brake

Typical Applications:

  • Restaurant equipment
  • Water softener valve controls
Stock Item Molon Part No. Torque
(in. - lb.)

Start - Run
F/LSpeed
(RPM)
F/L Amps Brake Type
Cone | Magnetic
Shaft Location(Figure) Length "L" (in.)
115 VOLT, 60 Hz
HGM-4007-5M 22- 30 7 0.50   X A 3.12
  HGM-4007-7M 22 -30 7 0.50 X   A 3.18
HGM-4026-13M 11- 13 25 0.65   X B 3.75
  HGM-4026-10M 11- 13 25 0.65 X   B 3.87
HGM-4050-6M 6- 5.5 50 0.65   X B 3.75
  HGM-4050-7M 6- 5.5 50 0.65 X   B 3.87
*220-240 Volt, 50 Hz Windings are also available.
For additional information, including speed/torque curves, other mounting and performance options and competitior's cross reference, consult your local Sales Representative office or our website at http://www.molon.com
