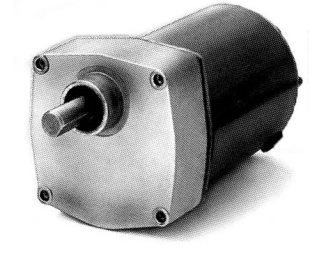

EM5 AC Reversible Gearmotor

EM5 - AC Reversible

115 Volt AC, 50/60 Hz
Torque up to 67 in-lb

Construction Features3.4" TM basemotor
No thermal protection
Class B insulation
Low noise helical gears
Reversible
Continuous duty/TENV
Permanent split capacitor motor
Die cast gearbox and cover
Needle and ball bearings
Grease lubricated
Capacitor required: 5 microfarad (not included)Typical Applications:
  • Copy machine main drive
  • Power transmission/conveyor drives
Stock Item Molon Part No. F/L Torque (in. - lb.) F/L (RPM) F/L Amps Length "L" (in.)
115 VOLT, 60 Hz
X EM5H-15-1M 67 14 0.38 5.56  AMAZON BUY NOW 200
X EM5H-28-1M 50 28 .051 6.06 AMAZON BUY NOW 200
X EM5R-56-1M 30 54 0.51 5.56 AMAZON BUY NOW 200
X EM5R-103-1M 20 95 0.59 5.56 AMAZON BUY NOW 200
X EM5R-125-2M 14 124 0.51 5.62 AMAZON BUY NOW 200
X EM5R-154-1M 12 154 0.59 5.62  AMAZON BUY NOW 200
For additional information, including speed/torque curves, other mounting and performance options and competitior's cross reference, consult your local Sales Representative office or our website at http://www.molon.com
