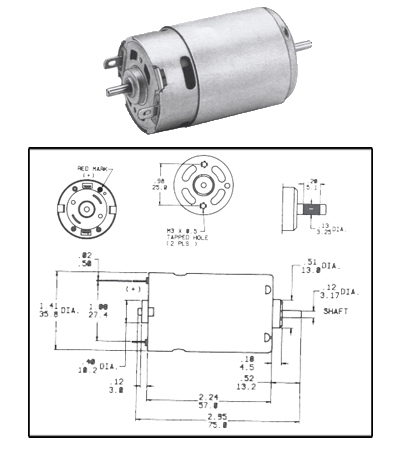

CMO-1200 -12 Volt PMDC Motor Compact Reversible


Details & Specifications

12 Volt PMDC Motor
Compact Reversible

Construction FeaturesReversible
Long life, 1000 hr+
Low cost in quantity
Wide temperature range, -20 to 250 deg F
Optional low temp lube, -60 deg F
Continuous or intermittent duty
Optional varistor for electronic noise reduction
Prelubed bushings
Optional straight knurl on shaftTypical Applications:

  • Pumps
  • Espresso mixer
  • High speed applications

Motor Specifications:

  • 6 to 12 volts DC
  • 2000 to 12,000 RPM
  • 0.20 to 4.50 in-oz
  • Bidirectional

OptionsOptional PC boards
Optional rectifier for AC service
Optional pinion or other drive element
Optional mount plate of easy replacementFrame and Shaft Sizes:

  • Small: 27.7 mm dia/2.30 mm shaft dia.
    (1.091 in. dia./.0906 in. dia.)
  • Flat: 32.0 mm dia/2.00 mm shaft dia.
    (1.260 in. dia./.0787 in. dia.)
  • Large: 35.8 mm dia/3.17 mm shaft dia.
    (1.409 in. dia./.1248 in. dia.)
