MYP60A - Permanent Split Capacitor (PSC) Synchronous Gearmotor
Contact Molon Motors for FREE QUOTE
moto QUALITY IS OUR FUTURE

MPY60A - Permanent Split Capacitor (PSC) Synchronous Gearmotor

MGM60-375-A-24-View-001

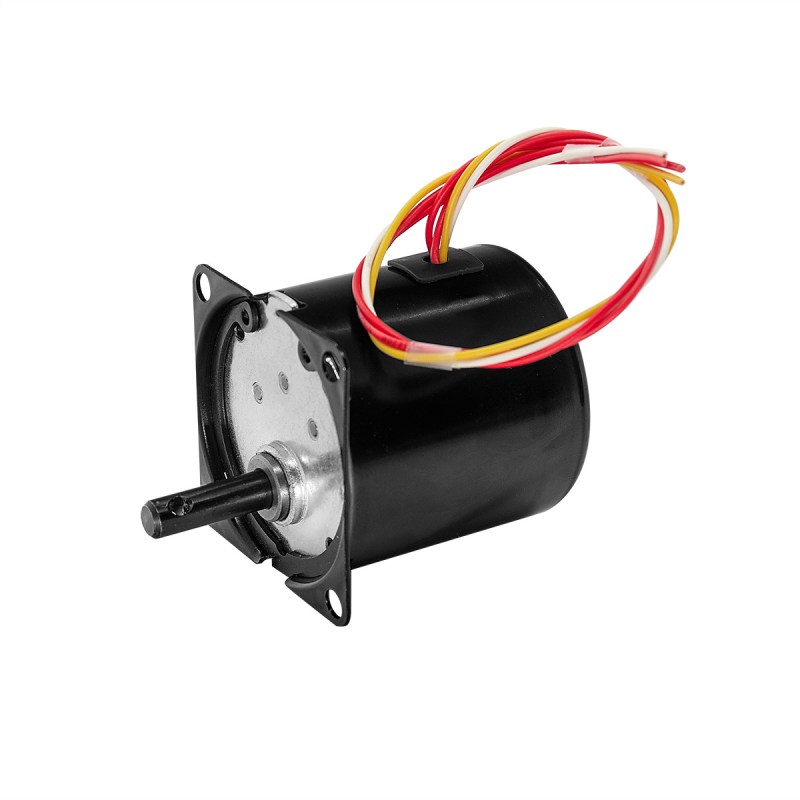

MGM60-375-A-24-View-001
MGM60-375-A-24-View-003

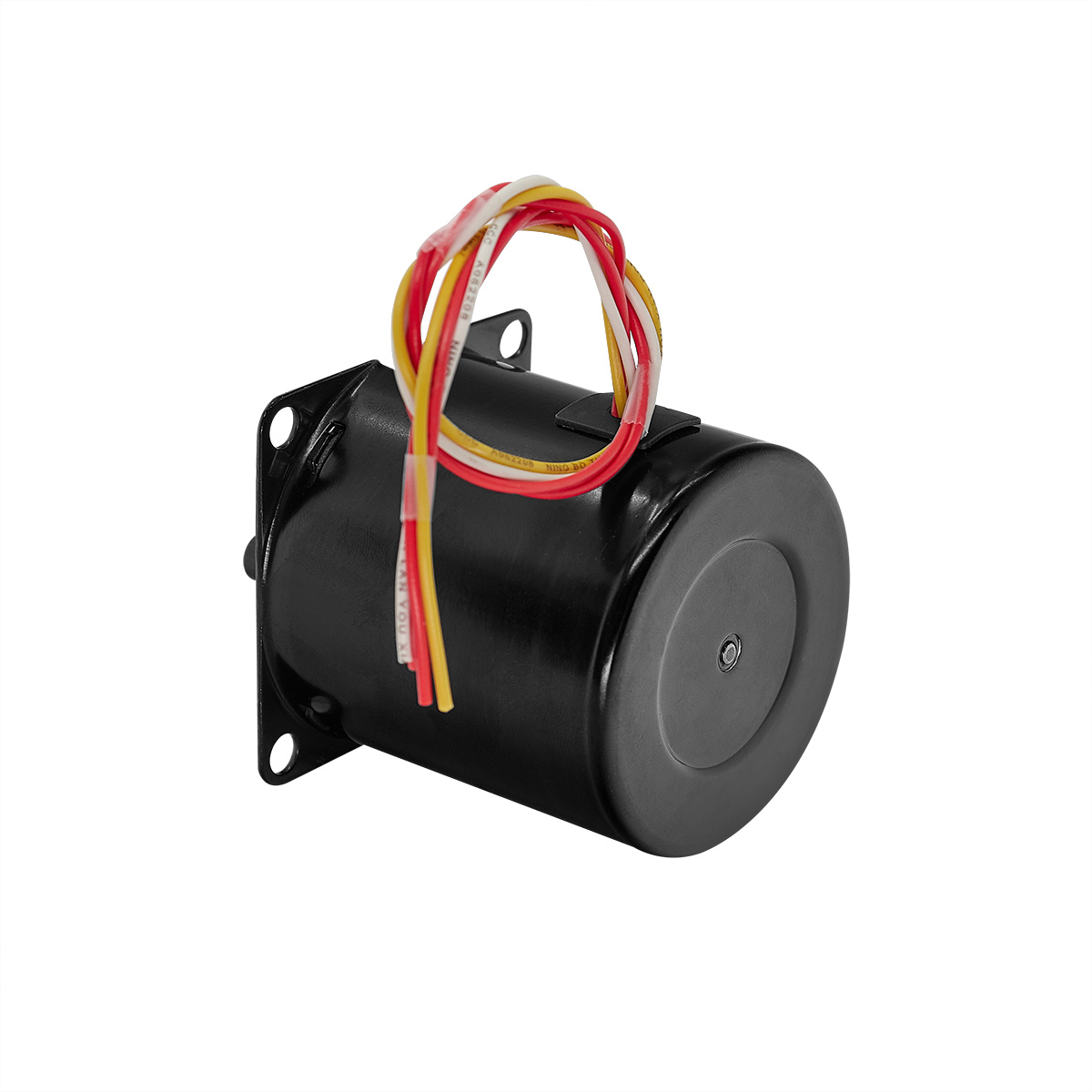

MGM60-375-A-24-View-002

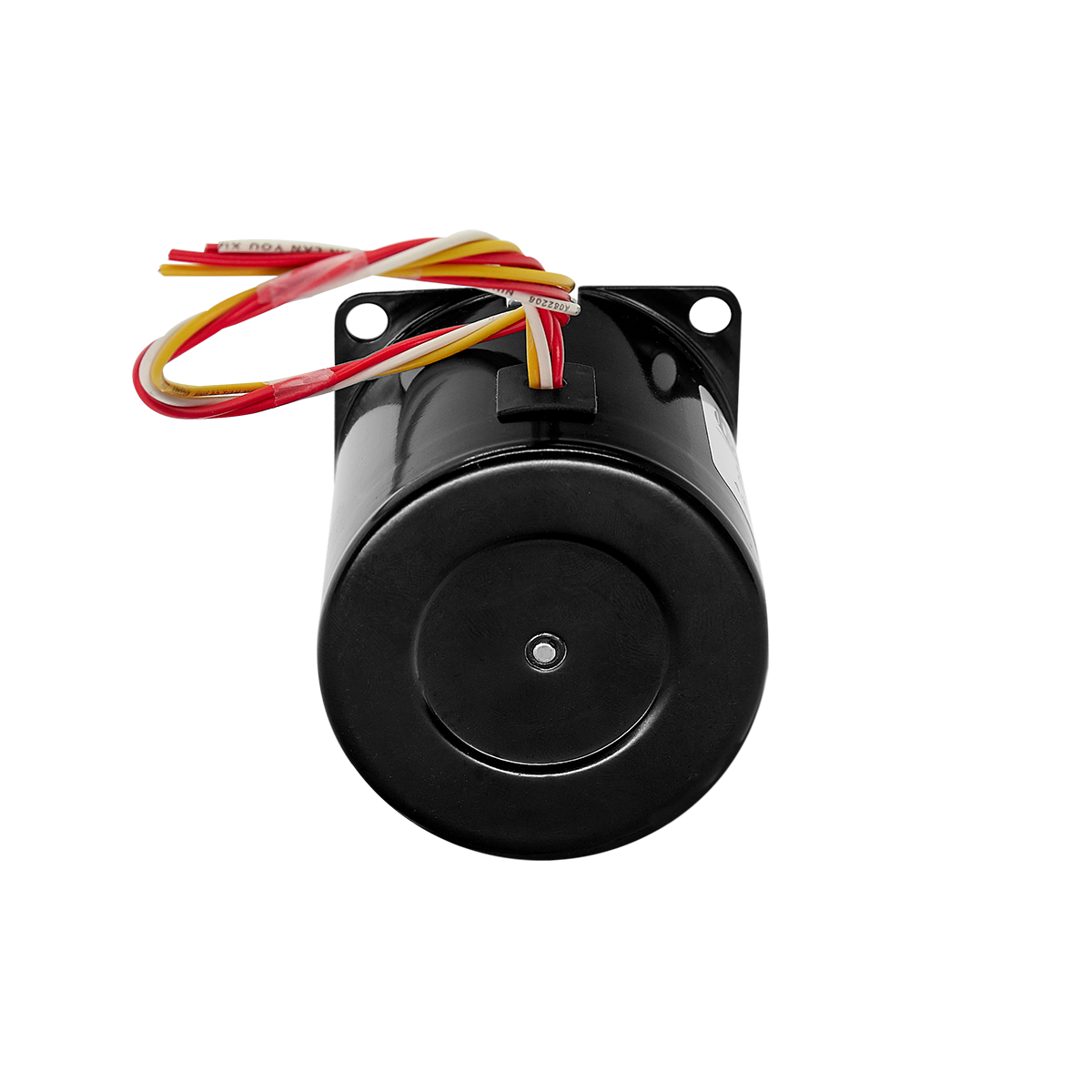

MGM60-375-A-24-View-004

Voltage: 24 - 240 VAC, 50/60 Hz


Rated Torque: 35 in-lbs


Speed Range: 2.7 - 145 RPM

Motor or Gearmotor:
Gearmotors
Voltage:
AC
Gearing:
Parallel Shaft
Winding:
PSC Synchronous

Preloader

*Customer can specify lead length, shaft diameter, length and voltages: 115 - 230 VAC / 50 - 60 HZ / 12 - 24 - 48 VDC

Motor Specifications:

CHART MPY60A Motor Specifications

Gearbox Specifications:

CHART MPY60A Gearbox Specifications

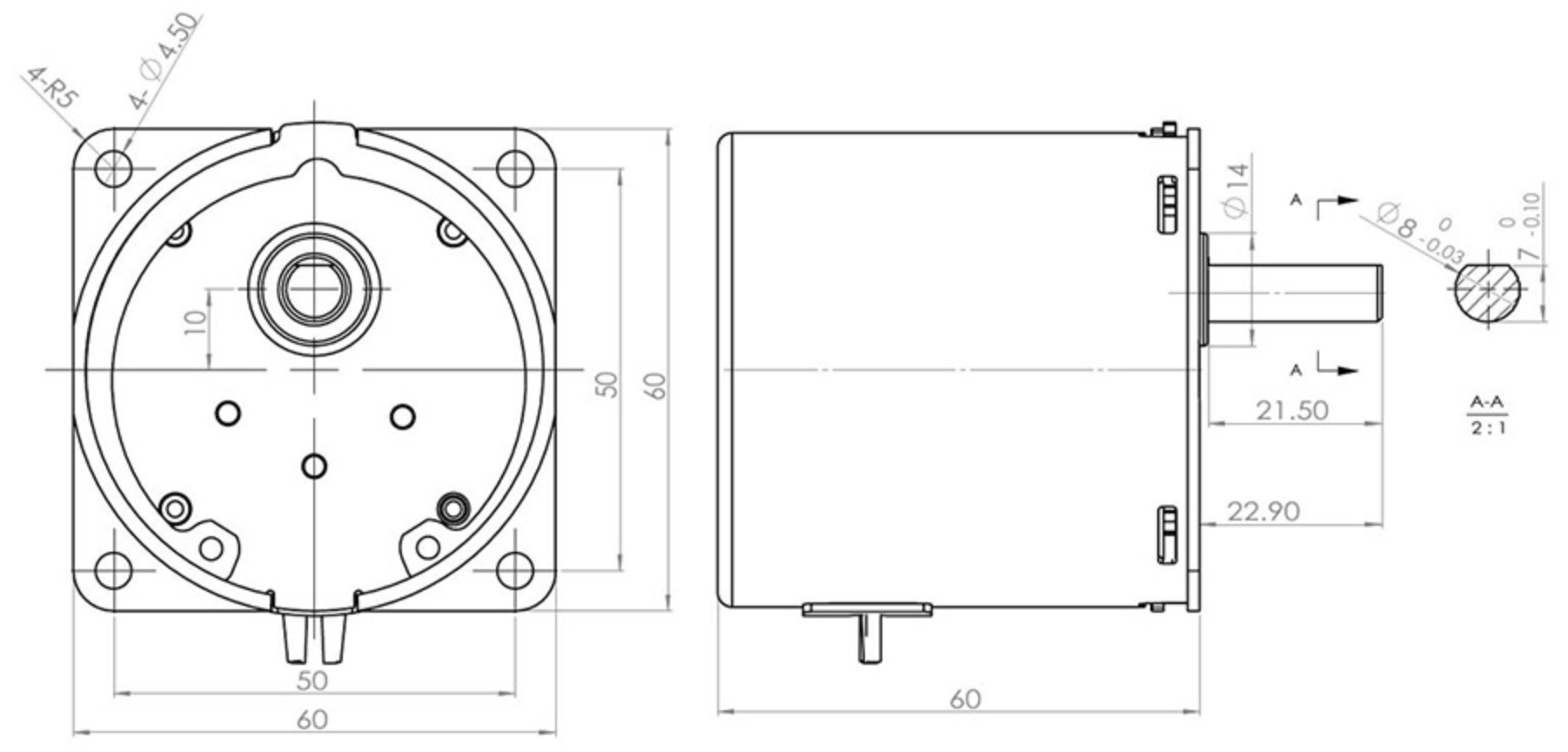

MGM60 375 A detail


Auto gambling table/laminator/Outdoor Auto Control Machine/Monitor.etc

This motor integrates the gear and the micro synchronous motor, and realizes the normal-reverse rotary control. It holds advantages of reliable running, large output torque, strong locking, small size, light weight, low noise, and long life.
Reversible

The stator will not be destroyed when blocking.
The speed is not changeable as the speed.
Good self-locking when the electricity is off.

This type motor, which holds more varieties of different specifications, simple operation and other advantages, has been widely used, such as various types of household appliances, rotating machines, electric apparatus, range hood, electric fan, electronic oven, Auto Mahjong Machine,Electric-drive airer, Air break Switch ,Valve Driver,Vending Machine ,Blending Machine, etc.
